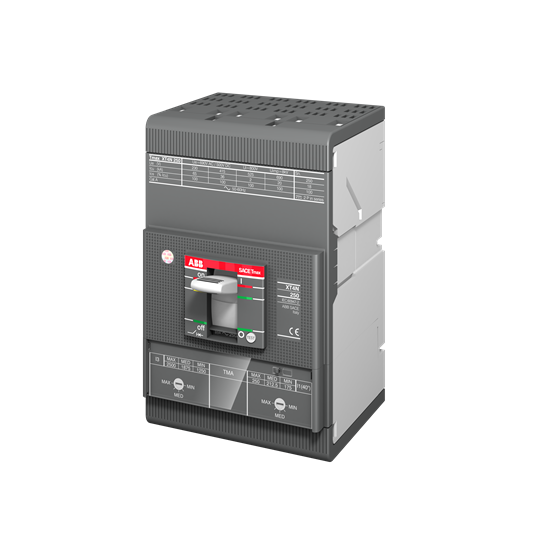

XT4V 160 MA 20 Im=100...200 3p F F

Name: XT4V 160 MA 20 Im=100...200 3p F F
Brand: ABB
SKU: 1SDA107704R1

C.BREAKER TMAX XT4V 160 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MA Iu 10 A I3=100...200 A

Ürün kimlikleri

SKU: 1SDA107704R1

EAN: 8056221028486

GTIN: 8056221028486

MPN: XT4V 160 MA 20 Im=100...200 3p F F

Low-voltage industrial components

Teknik özellikler

Rated voltage	690 - 690 V
Number of poles	3
Device construction	Built-in device fixed built-in technique
Motor drive optional	evet
Motor drive integrated	hayır
Type of control element	Toggle
Degree of protection (IP)	IP20
Rated permanent current Iu	20 A
With switched-off indicator	hayır
Overload release current setting	8.0 - 20 A
Integrated earth fault protection	hayır
Complete device with protection unit	evet
With integrated under voltage release	hayır
DIN rail (top hat rail) mounting optional	hayır
Suitable for DIN rail (top hat rail) mounting	hayır
Type of electrical connection of main circuit	Bolt connection
Position of connection for main current circuit	Front side
Adjustment range undelayed short-circuit release	100 - 200 A
Number of auxiliary contacts as change-over contact
Number of auxiliary contacts as normally open contact
Number of auxiliary contacts as normally closed contact
Adjustment range short-term delayed short-circuit release
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	-
