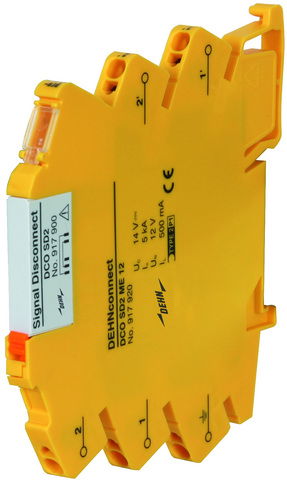

Surge arrester terminal block 2-pole DEHNconnect SD2
DEHNconnect SD2 terminal block with integrated surge protection. Energy-coordinated two-stage arrester for protecting two single lines sharing a common reference potential as well as unbalanced interfaces. Signal circuits can be disconnected by removing the plug-in part.
Ürün kimlikleri
SKU: 917920
EAN: 4013364150560
GTIN: 4013364150560
MPN: DCO SD2 ME 12
Kategoriler
Özellikler
|
Frequency
|
|
|
Connection 1
|
Push-in terminal
|
|
Earthing via
|
DIN rail (top hat rail)
|
|
Assembly width
|
6 mm
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Limiting frequency
|
2.5 MHz
|
|
Nominal voltage AC
|
|
|
Nominal voltage DC
|
12.0 - 12.0 V
|
|
Nominal load current
|
0.5 A
|
|
Signal disconnection
|
evet
|
|
Explosion-tested version
|
evet
|
|
Signalling at the device
|
None
|
|
Degree of protection (IP)
|
Other
|
|
Pro-active thermo-control
|
-
|
|
Max. continuous voltage AC
|
9.5 V
|
|
Max. continuous voltage DC
|
14 V
|
|
With remote signalling contact
|
-
|
|
Voltage protection level core/core
|
36 V
|
|
Voltage protection level core/earth
|
19 V
|
|
Lightning impulse current (10/350 µs)
|
1 kA
|
|
Nominal discharge surge current (8/20)
|
10 kA
|
|
Number of conductors (without earthing)
|
2
|
|
Voltage protection level core/signal ground
|
-
|
|
Voltage protection level signal ground/protective ground
|
-
|
