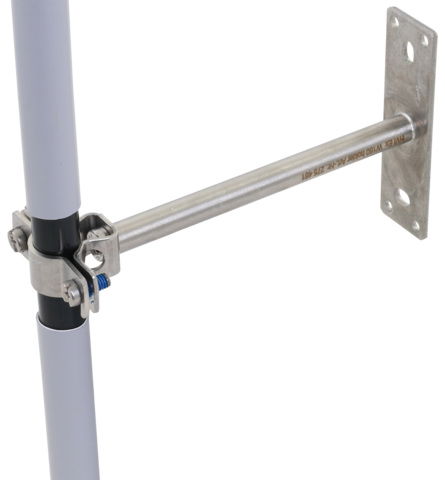

HVI-L+ Ex W160 holder f. Conductor D18mm distance 160mm w. StSt fixing plate
Conductor holder for routing the HVI light plus Conductor in the potentially explosive atmospheres Ex zone 1 (gases, vapours, mists) and Ex zone 21 (dusts). The special installation conditions safely prevent electric sparks to neighbouring metal parts when lightning current flows through the HVI light plus Conductor. Version with spacer sleeve (distance: 160 mm) for fixing to metal structural components (e.g. façades).
Ürün kimlikleri
SKU: 275461
EAN: 4013364485938
GTIN: 4013364485938
MPN: LH ZS 18 EX W160 BP V2A
Teknik özellikler
| Wall distance | 55.0 - 55.0 mm |
| Material base part | Stainless steel 304 (V2A) |
| Material of holder | Stainless steel 304 (V2A) |
| Material of carrier | Stainless steel 304 (V2A) |
| Pipe chucking range | |
| Mounting type holder | Bore hole |
| Thread size (metric) | - |
| Mounting type conductor | With screw clamp |
