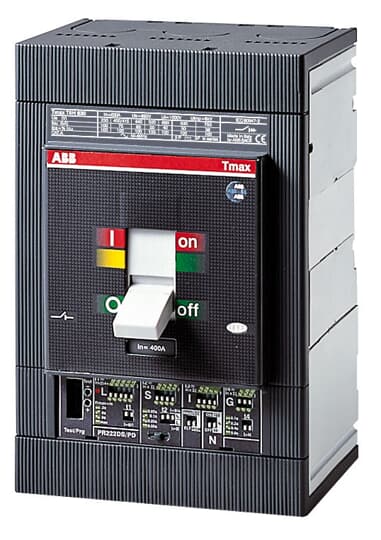

T5X-HA400 PR222DS-LSIG In320 4p FF800VAC

Link copied
SKU
EAN
GTIN
MPN
C.BREAKER TMAX T5X-HA 400 800V FIXED FOUR-POLE WITH FRONT TERMINALS AND ELECTRONIC RELEASE IN AC PR222DS-LSIG R 320

Teknik özellikler

Rated voltage 800 - 800 V
Number of poles 4
Device construction Built-in device fixed built-in technique
Motor drive optional evet
Motor drive integrated hayır
Type of control element Toggle
Degree of protection (IP) IP20
Rated permanent current Iu 320 A
Overload release current setting 128.0 - 320 A
Complete device with protection unit evet
DIN rail (top hat rail) mounting optional hayır
Type of electrical connection of main circuit Bolt connection
Adjustment range undelayed short-circuit release 480.0 - 3840 A
Number of auxiliary contacts as normally open contact
Adjustment range short-term delayed short-circuit release 192.0 - 3200 A

Belgeler

Deeplink product page

Aç

Deeplink REACH

1SDL000282R1448 - REACh (MCCBs ACBs and SSCBs).pdf

Aç

Instructions for use

1SDH001608R0001.pdf

Aç

Product data sheet

Aç

Declaration RoHS

1SDL000282R1377 - RoHS II (MCCBs, ACBs and SSCBs).pdf

Aç

Declaration DOC CE (Declaration of conformity CE)

T5 HA 1SDH000165R0036 v.5.pdf

Aç
