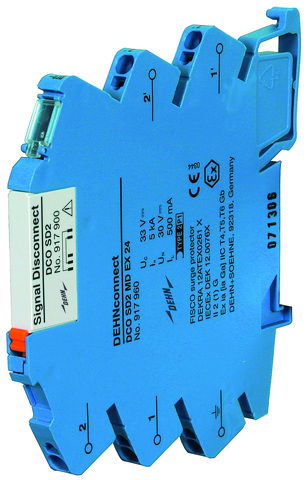

Surge arrester terminal block 2-pole DEHNconnect SD2

Name: Surge arrester terminal block 2-pole DEHNconnect SD2
Brand: DEHN
SKU: 917960

DEHNconnect Ex(i) terminal block with integrated surge protection. Energy-coordinated low-capacitance protective circuit for protecting intrinsically safe measuring circuits and bus systems, meets FISCO requirements. Insulation strength > 500 V to earth. Signal can be disconnected via plug-in module.

Ürün kimlikleri

SKU: 917960

EAN: 4013364150638

GTIN: 4013364150638

MPN: DCO SD2 MD EX 24

Kategoriler

Terminals, Connectors & Interconnects Terminal Blocks

Teknik özellikler

Frequency
Connection 1	Push-in terminal
Earthing via	DIN rail (top hat rail)
Assembly width	6 mm
Mounting method	DIN rail (top hat rail) 35 mm
Limiting frequency	5.8 MHz
Nominal voltage AC
Nominal voltage DC	24.0 - 24.0 V
Nominal load current	-
Signal disconnection	evet
Explosion-tested version	evet
Signalling at the device	-
Degree of protection (IP)	Other
Pro-active thermo-control	-
Max. continuous voltage AC	23 V
Max. continuous voltage DC	33 V
With remote signalling contact	-
Voltage protection level core/core	45 V
Voltage protection level core/earth	1400 V
Lightning impulse current (10/350 µs)	1 kA
Nominal discharge surge current (8/20)	10 kA
Number of conductors (without earthing)	2
Voltage protection level core/signal ground	-
Voltage protection level signal ground/protective ground	-

Belgeler

Deeplink product page

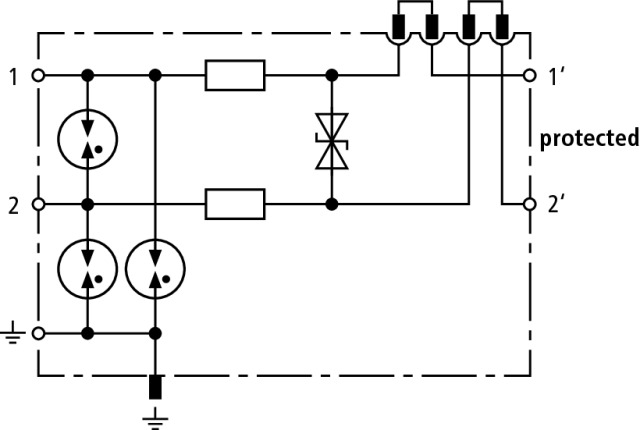

Circuit diagram
