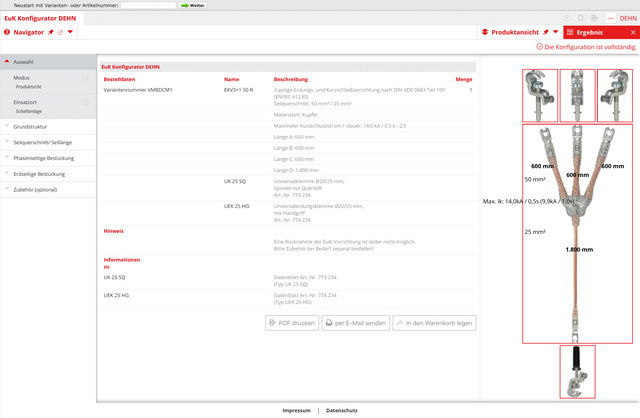

Three-pole earthing and short-circuiting cable 50mm² with crimped cable lugs
Three-pole earthing and short-circuiting device according to EN/IEC 61230 (DIN VDE 0683-100), cable cross-section: 50 mm² / 25 mm², maximum short-circuit current / duration: 14,0 kA / 0.5 s - 2.5; length A=B=C= 600 mm, length D = 1800 mm; phase cables equipped with 3x universal clamp Ø20/25 mm, T-pin shaft (Part No. 773 234) and earth cable equipped with 1x universal clamp Ø20/25 mm with handle (Part No. 774 234).
Ürün kimlikleri
SKU: VMBDCM1
EAN: 4013364165519
GTIN: 4013364165519
MPN: EKV3+1 50 R VMBDCM1
Kategoriler
Özellikler
|
Model
|
Cable
|
|
Material
|
Copper
|
|
Fully insulated
|
-
|
|
Number of poles
|
3
|
|
Length earth line
|
1800 mm
|
|
Length 1-pole rope
|
-
|
|
Length phaseline a
|
600 mm
|
|
Length phaseline b
|
600 mm
|
|
Length phaseline c
|
600 mm
|
|
Max. short circuit current
|
14.0 kA
|
|
Connecting part, earth-side
|
Universal clamp 20/25 mm
|
|
Connecting part, phase-side
|
Universal clamp 20/25 mm
|
|
Wire cross section, earth-side
|
20 mm²
|
|
Wire cross section, phase-side
|
50 mm²
|
