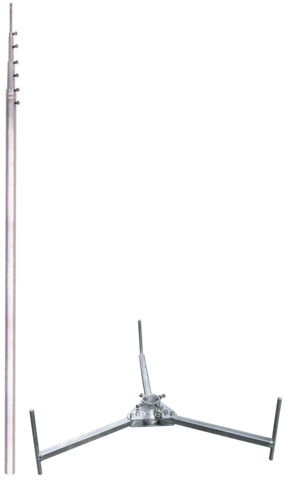

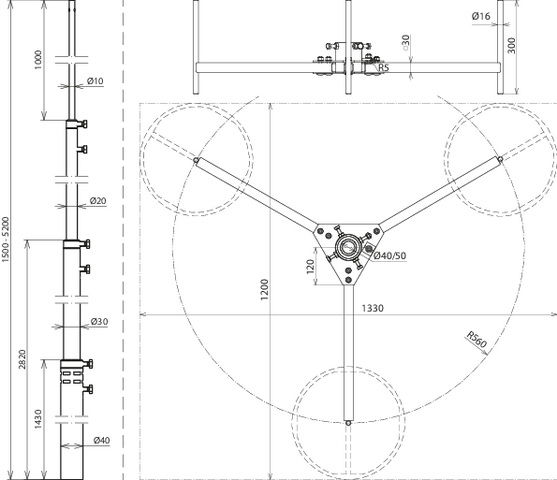

-SET- telescopic air-term. rod L5.2m Al with tripod R560mm HDG steel (St/tZn)
Telescopic, self-supporting air-termination rod with hinged HDG steel tripod. For protecting large roof-mounted structures, adjustable to a roof slope up to max. 10°. The air-termination rods are dimensioned to Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)for a max. gust wind speed of 183 km/h. Version with a height of 5200 mm.
Ürün kimlikleri
SKU: 105711
EAN: 4013364500976
GTIN: 4013364500976
MPN: FS T D40 4.2 5.2M AL DBS RA560 STTZN
Kategoriler
Teknik özellikler
| Model | Interception rod |
| Length | 5200 mm |
| Diameter | 10.0 - 40.0 mm |
| Material | Aluminium |
| Connection | Round conductor |
| Surface protection | Untreated |
| High-voltage-proof insulated model | - |
