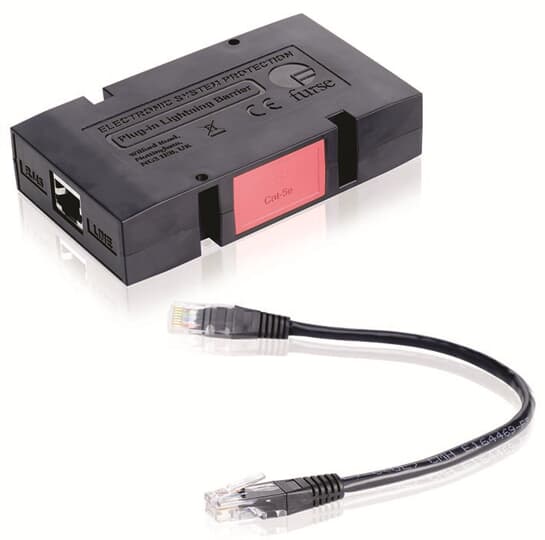

ESP CAT-5E Surge Protective Device

Name: ESP CAT-5E Surge Protective Device
Brand: ABB
SKU: 7TCA085400R0017

ESP CAT-5E DATA SPD FOR CAT-5E 100 BASET COMPUTER NETWORKS

Ürün kimlikleri

SKU: 7TCA085400R0017

EAN: 5414363078425

GTIN: 5414363078425

MPN: ESP CAT-5E

Teknik özellikler

Frequency	100 - 100 MHz
Connection 1	Other
Earthing via	-
Assembly width	-
Mounting method	Other
Limiting frequency	100 MHz
Nominal voltage AC	5 - 5 V
Nominal voltage DC	5 - 5 V
Nominal load current	0.4 A
Signal disconnection	-
Explosion-tested version	hayır
Signalling at the device	None
Degree of protection (IP)	-
Pro-active thermo-control	hayır
Max. continuous voltage AC	5 V
Max. continuous voltage DC	5 V
With remote signalling contact	hayır
Voltage protection level core/core	120 V
Voltage protection level core/earth	120 V
Lightning impulse current (10/350 µs)	1 kA
Nominal discharge surge current (8/20)	10 kA
Number of conductors (without earthing)	-
Voltage protection level core/signal ground	120 V
Voltage protection level signal ground/protective ground	120 V
