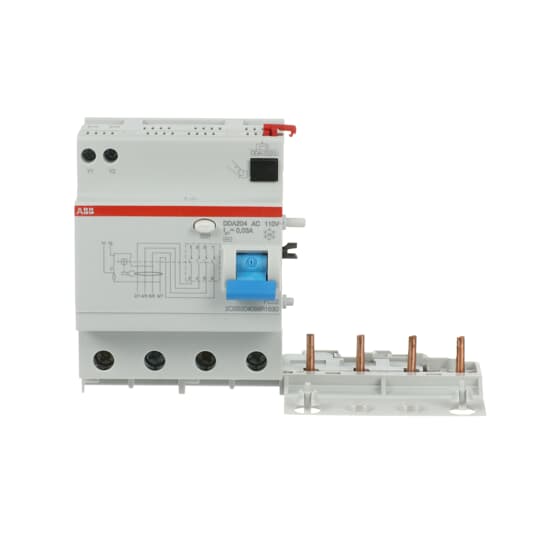

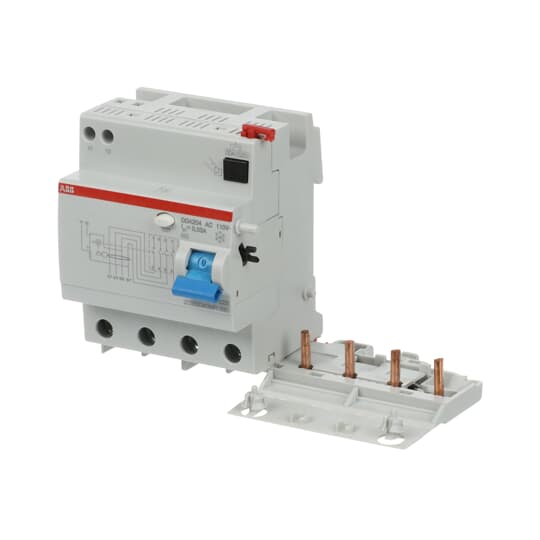

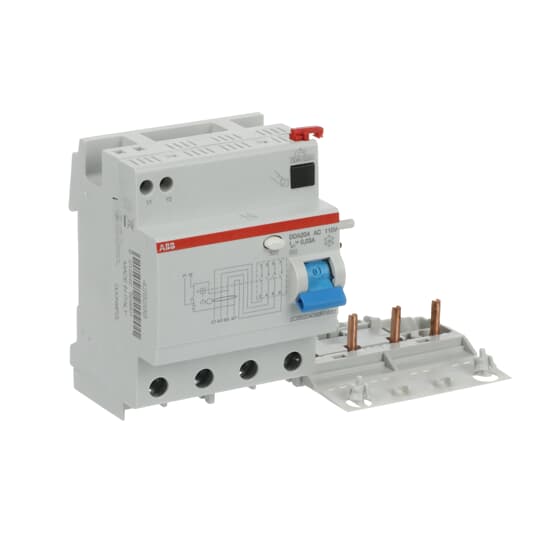

Residual Current Device Block
1 / 4
Residual Current Device Block
The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Operating voltage of circuit test: 110V. Applications: naval, industrial.
Ürün kimlikleri
SKU: 2CSB204099R1630
EAN: 8012542929901
GTIN: 8012542929901
MPN: DDA204 AC-63/0.03 110V
Kategoriler
ETIM grubu
Teknik özellikler
| EFI07337 | 0.0387|0.0387 |
| EFI07343 | 0.0387|0.0387 |
| EFI07515 | -13|131 |
| Frequency | 50/60 Hz |
| Max. delay time | - |
| Nominal current | 63 A |
| Nominal voltage | 230 - 400 V |
| Number of poles | 4 |
Belgeler
Deeplink product page
Deeplink REACH
9AKK108467A9482_en_E_Reach Declaration - ABB S.p.A. Vittuone.pdf
Instructions for use
DDA200 instruction manual_rev_Jul25.pdf
Product data sheet
Declaration RoHS
9AKK106713A5614_DoC_DDA200_AC_DDA200_A.pdf
Declaration EPD (Environmental Product Declaration)
ABBG-00519-V01.01-EN.pdf
