Residual Current Circuit Breaker with Overcurrent Protection

Name: Residual Current Circuit Breaker with Overcurrent Protection
Brand: ABB
SKU: 2CSR255180R3405

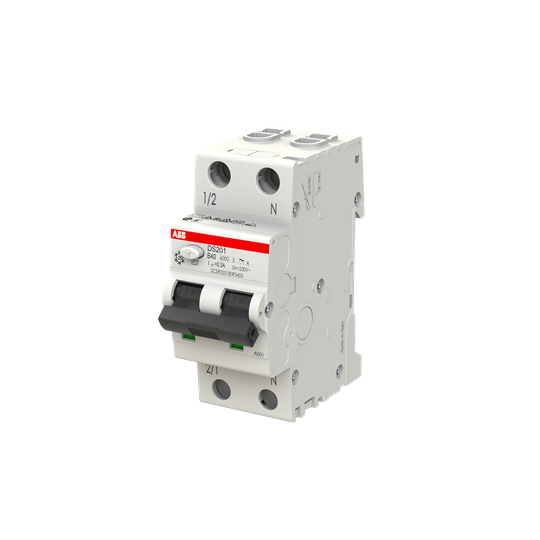

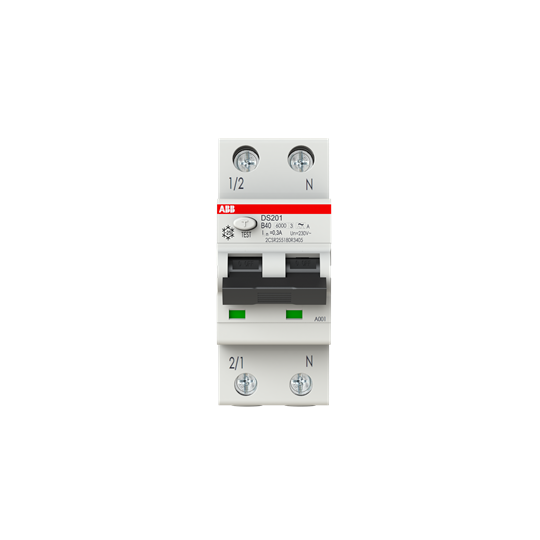

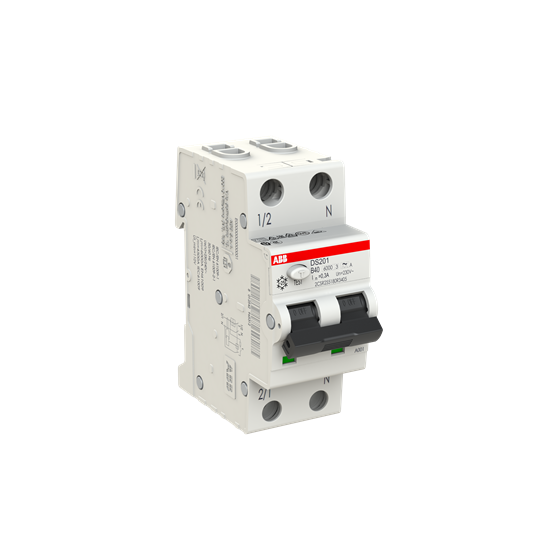

The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts.

Ürün kimlikleri

SKU: 2CSR255180R3405

EAN: 8012542965312

GTIN: 8012542965312

MPN: DS201 B40 A300

Kategoriler

Switchgear & Circuit Protection Circuit Breakers RCBOs

ETIM grubu

Circuit breakers and fuses

Teknik özellikler

EFI00218	2.71653
EFI07337	-\|-
EFI07343	0.0011\|0.0248
EFI07515	-13\|131
Frequency	50/60 Hz
Voltage type	AC
Rated current	40 A
Rated voltage	240 V
Built-in depth	69 mm
Pollution degree	2
Rated fault current	0.3 A
Leakage current type	A
Over voltage category	3
Current limiting class	3
Release characteristic	B
Surge current capacity	-
Number of poles (total)	2
With interlocking device	hayır
Degree of protection (IP)	IP20
Number of protected poles	1
Flush-mounted installation	hayır
Rated insulation voltage Ui	500 V
Disconnection characteristic	Undelayed
Anti-nuisance tripping version	hayır
Width in number of modular spacings	2
Ambient temperature during operating	-25 - 55 °C
Rated impulse withstand voltage Uimp	4 kV
Concurrently switching neutral conductor	evet
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired	0.75 - 16 mm²
Rated short-circuit breaking capacity according to EN 61009	6 kA
Rated short-circuit breaking capacity according to IEC 60947-2	10 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1	6 kA

Belgeler

Deeplink product page

Aç

Deeplink REACH

9AKK108467A9482_en_F_Reach Declaration - ABB S.p.A. Vittuone.pdf

Aç

Instructions for use

2CSR423003D5904_New RCBO.pdf

Aç

Product data sheet

Aç

Declaration RoHS

2CSC421001D2706_EU_DoC_DS201.pdf

Aç

Declaration EPD (Environmental Product Declaration)

ABBG-00209-V01.01-EN PEP_DS201 V5 B4 final_approved.pdf

Aç
