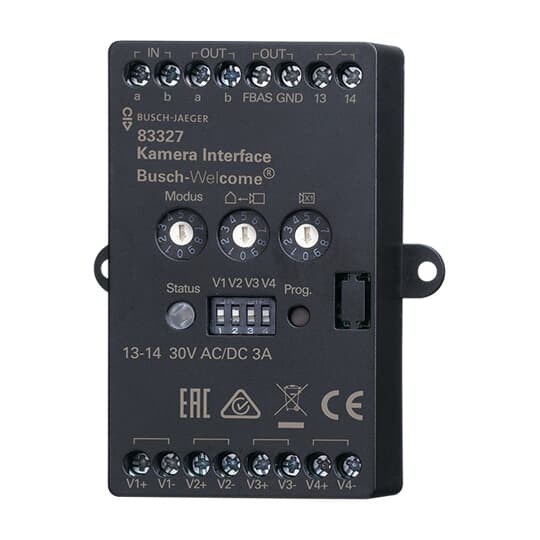

Camera Interface

Link copied
SKU
EAN
GTIN
MPN
For the integration of up to four analogue cameras into one Welcome system. Permits assignment of the cameras to a Welcome outdoor station (video/audio) or to a Welcome video indoor station. Up to four camera interface devices can be connected together in one Welcome system. In a Welcome system, up to 16 analogue cameras can be integrated. Programming directly via rotary switch on the camera interface. Video signal input 1 Vss, FBAS/CVBS, on 75 ohm (PAL/NTSC) Consumer units: 2 For an outdoor video station it is necessary to replace the basic module 83140/xx with a new base call button module 83140/xx-101. The current basic module 83140/xx can continue to be used with an outdoor audio station.

Teknik özellikler

Depth 25 mm
Width 60 mm
Height 76 mm
EFI00008 2.36220
EFI00040 2.99212
EFI00049 0.98425
Function -
Material Plastic
Type of interface -
Width in number of modular spacings 0.0

Belgeler

Deeplink product page

Aç

Deeplink REACH

All Articles_REACH_EN_25-1_2CKA309999E9999.pdf

Aç

Product data sheet

Aç

Declaration RoHS

83327_ROHS_XX_V01_2CKA200000E7003.pdf

Aç
