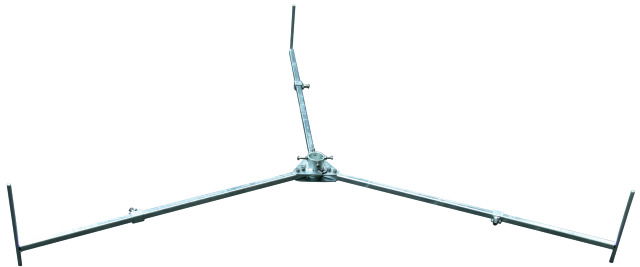

Hinged tripod f. air-ter. rods D 40-50mm L 6-8.5m inclination angle 10° St/tZn

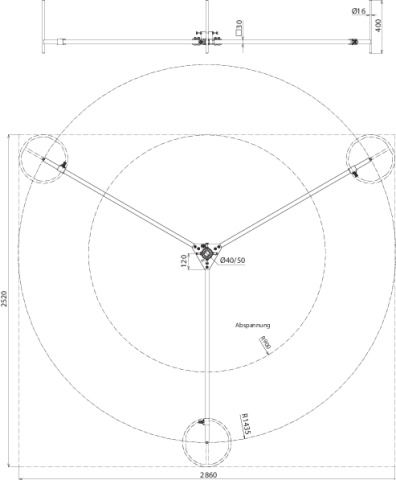

Tripod for installation of DEHNiso-Combi supporting tubes (D50 length 3200 mm). For erection in concrete bases with wedges, without additional fixing to construction elements. Adjustable to the roof inclination up to max. 10°. Hinged design, especially for installing the HVI Conductor inside the supporting tube. To keep within the bending radius of the HVI Conductor at the tripod, two concrete bases are positioned underneath the brace and one on top of it.
