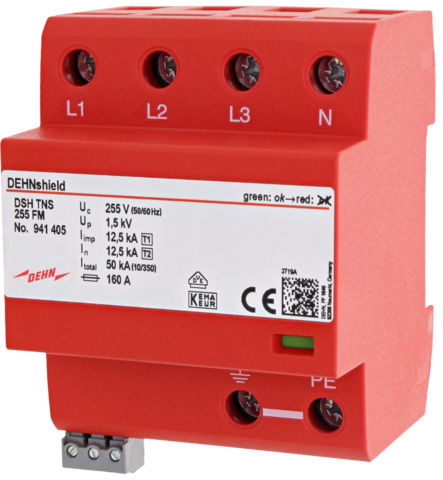

Appl.-opt. combined arrester DEHNshield type 1+2 for three-phase TN-S systems
1 / 2
Appl.-opt. combined arrester DEHNshield type 1+2 for three-phase TN-S systems
Application-optimised multipole type 1 and type 2 DEHNshield spark-gap-based combined lightning current and surge arrester (according to EN 61643-11). Compact design due to space-saving spark gap technology with a width of only 1 module / pole. For use in residential buildings and special applications. Capable of protecting terminal equipment. For protecting low-voltage consumer installations against surges, even in case of direct lightning strikes. For installation in conformity with the lightning protection zone concept at the boundaries from 0A – 2.
Ürün kimlikleri
SKU: 941405
EAN: 4013364275331
GTIN: 4013364275331
MPN: DSH TNS 255 FM
Kategoriler
Teknik özellikler
| Test class | Type 1 + 2 |
| Max. PV-voltage | - |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of poles | 4 |
| Construction size | 4 modular spacing |
| Remote signalling | evet |
| Nominal voltage AC | 230 V |
| Nominal voltage DC | - |
