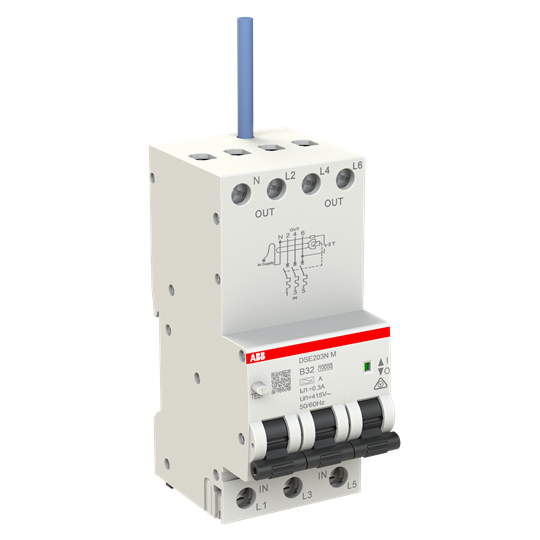

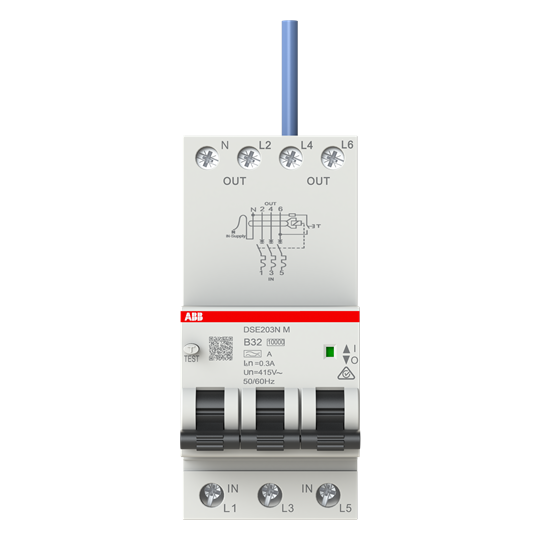

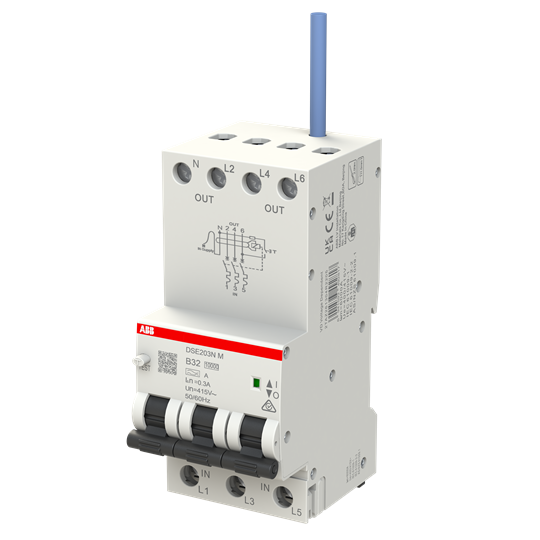

ERCBO 3P+N

Name: ERCBO 3P+N
Brand: ABB
SKU: 2TAZ234414R4325

DSE203N M is a 3P+N electronic residual current circuit breaker with overcurrent protection (eRCBO) in three modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts (30 mA versions). The neutral is unswitched.

Ürün kimlikleri

SKU: 2TAZ234414R4325

EAN: 6941593443826

GTIN: 6941593443826

MPN: DSE203N M B32 A300

Kategoriler

Switchgear & Circuit Protection Circuit Breakers RCBOs

ETIM grubu

Circuit breakers and fuses

Teknik özellikler

EFI00218	2.818892
EFI07337	0.0015\|0.0387
EFI07343	0.0015\|0.0248
EFI07515	23\|131
Frequency	50/60 Hz
Voltage type	AC
Rated current	32 A
Rated voltage	415 V
Built-in depth	71.6 mm
Pollution degree	2
Rated fault current	0.3 A
Leakage current type	A
Over voltage category	3
Current limiting class	-
Release characteristic	B
Surge current capacity	-
Number of poles (total)	4
With interlocking device	hayır
Degree of protection (IP)	IP20
Number of protected poles	3
Flush-mounted installation	hayır
Rated insulation voltage Ui	500 V
Disconnection characteristic	Undelayed
Anti-nuisance tripping version	hayır
Width in number of modular spacings	3
Ambient temperature during operating	-5 - 55 °C
Rated impulse withstand voltage Uimp	4 kV
Concurrently switching neutral conductor	evet
Connectable conductor cross section solid-core	1 - 25 mm²
Connectable conductor cross section multi-wired	1 - 16 mm²
Rated short-circuit breaking capacity according to EN 61009	10 kA
Rated short-circuit breaking capacity according to IEC 60947-2	-
Rated short-circuit breaking capacity Icn according to EN 61009-1	10 kA
