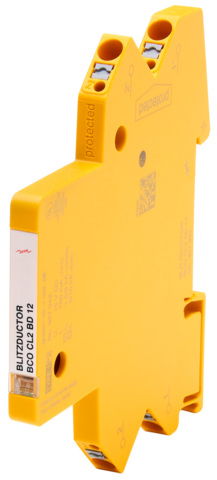

Compact combined arrester for 1 pair BLITZDUCTORconnect w. fault indication
Space-saving, compact combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair of unearthed balanced interfaces.
Ürün kimlikleri
SKU: 927942
EAN: 4013364411777
GTIN: 4013364411777
MPN: BCO CL2 BD 12
Kategoriler
Özellikler
|
Frequency
|
|
|
Connection 1
|
Push-in terminal
|
|
Earthing via
|
DIN rail (top hat rail)
|
|
Assembly width
|
6 mm
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Limiting frequency
|
2.6 MHz
|
|
Nominal voltage AC
|
|
|
Nominal voltage DC
|
12.0 - 12.0 V
|
|
Nominal load current
|
0.75 A
|
|
Signal disconnection
|
-
|
|
Explosion-tested version
|
-
|
|
Voltage protection level
|
-
|
|
Degree of protection (IP)
|
IP20
|
|
Pro-active thermo-control
|
evet
|
|
Max. continuous voltage AC
|
10.6 V
|
|
Max. continuous voltage DC
|
15 V
|
|
With remote signalling contact
|
-
|
|
Voltage protection level core/core
|
32 V
|
|
Voltage protection level core/earth
|
600 V
|
|
Lightning impulse current (10/350 µs)
|
3 kA
|
|
Nominal discharge surge current (8/20)
|
10 kA
|
|
Number of conductors (without earthing)
|
2
|
|
Voltage protection level core/signal ground
|
-
|
|
Voltage protection level signal ground/protective ground
|
-
|
