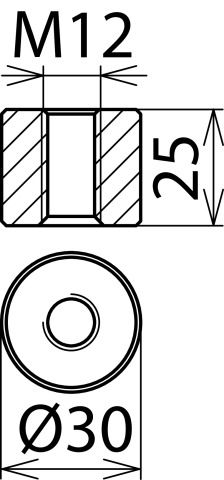

Welding-type connector, with M12 female thread St/galZn - KIT -
Weld-on connector with female thread as connection point to the earthing system in accordance with EN/IEC 61230 (DIN VDE 0683-100). High mechanical strength due to non-cutting shaped thread.
Ürün kimlikleri
SKU: 336020
EAN: 4013364003941
GTIN: 4013364003941
MPN: AS SCHW M12
Teknik özellikler
| Mounting method | Weldable |
| Construction type | Straight |
| Diameter fixed point | 30 mm |
| Max. short circuit current | 42 kA |
| Suitable for round conductors | - |
| Max. wire cross section copper | - |
| Connection of the earthing and short circuit device | Internal thread |
