Kategoriler
Özellikler
|
Category type 2
|
evet
|
|
Max. PV-voltage
|
-
|
|
Mounting method
|
On basic element
|
|

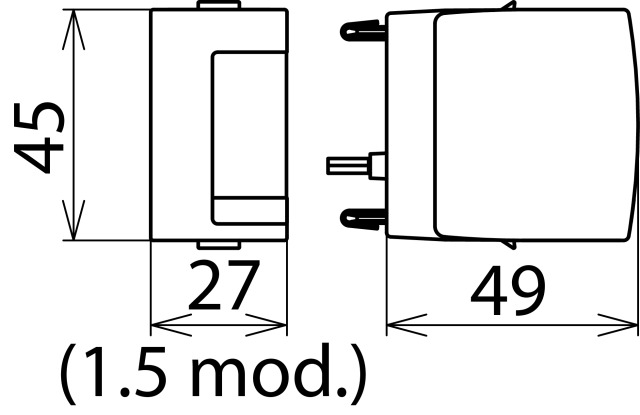

Construction size
|
1.5 modular units
|
|
Nominal voltage AC
|
-
|
|
Nominal voltage DC
|
48 V
|
|
Leakage-current free
|
-
|
|
Integrated backup fuse
|
-
|
|
System configuration DC
|
-
|
|
System configuration IT
|
-
|
|
System configuration TN
|
-
|
|
System configuration TT
|
-
|
|
Signalling at the device
|
Optical
|
|
Voltage protection level
|
0.5 kV
|
|
Degree of protection (IP)
|
-
|
|
System configuration TN-C
|
-
|
|
System configuration TN-S
|
-
|
|
Max. continuous voltage AC
|
-
|
|
Max. continuous voltage DC
|
60 V
|
|
System configuration other
|
-
|
|
System configuration TN-C-S
|
-
|
|
Voltage protection level L-N
|
-
|
|
Voltage protection level N-PE
|
-
|
|
With remote signalling contact
|
-
|
|
Integrated short-circuit protection
|
-
|
|
Max. discharge surge current (8/20)
|
-
|
|
Nominal discharge surge current (8/20)
|
12.5 kA
|
|
Number of conductors (without earthing)
|
-
|
|
Short-circuit breaking capacity (Isccr)
|
-
|
|
Max. conductor cross section flexible (fine-strand)
|
-
|
|
Max. conductor cross section solid (solid, stranded)
|
-
|
|
Integrated short-circuit protection selective to fuse gG
|
-
|
|
Max. overcurrent protection device, series connection (fuse)
|
-
|
|
Max. overcurrent protection device, parallel connection (fuse)
|
-
|
