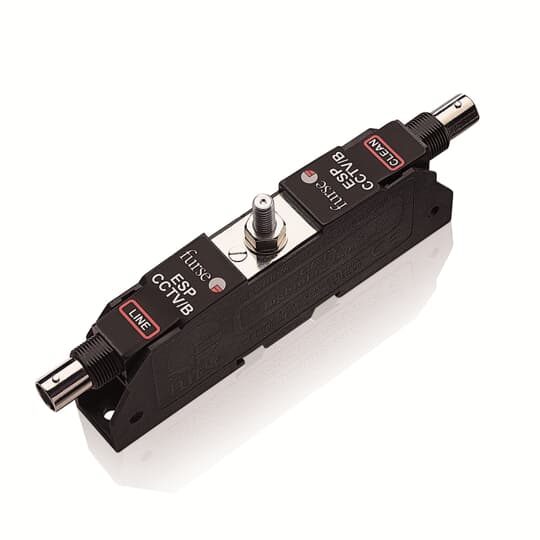

ESP CCTV/B-50V Surge Protective Device

Name: ESP CCTV/B-50V Surge Protective Device
Brand: ABB
SKU: 7TCA085400R0126

ESP CCTV/B-50V DATA SPD FOR 50V CCTV SYSTEMS WITH BNC CONNECTION FOR COAX CABLE

Ürün kimlikleri

SKU: 7TCA085400R0126

EAN: 5415022149968

GTIN: 5415022149968

MPN: ESP CCTV/B-50V

Kategoriler

Security & Access Control CCTV Systems

Earthing, lightning and surge protection

Frequency	100 - 100 MHz
Connection 1	Other
Earthing via	-
Assembly width	-
Mounting method	On basic element
Limiting frequency	100 MHz
Nominal voltage AC	1 - 1 V
Nominal voltage DC
Nominal load current	0.75 A
Signal disconnection	-
Explosion-tested version	hayır
Signalling at the device	None
Degree of protection (IP)	-
Pro-active thermo-control	hayır
Max. continuous voltage AC	56.7 V
Max. continuous voltage DC	-
With remote signalling contact	hayır
Voltage protection level core/core	105 V
Voltage protection level core/earth	105 V
Lightning impulse current (10/350 µs)	2.5 kA
Nominal discharge surge current (8/20)	10 kA
Number of conductors (without earthing)	-
Voltage protection level core/signal ground	105 V
Voltage protection level signal ground/protective ground	105 V
