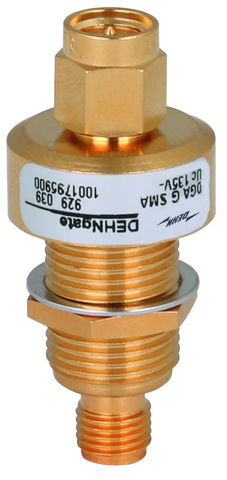

DEHNgate surge arrester with SMA connection

Name: DEHNgate surge arrester with SMA connection
Brand: DEHN
SKU: 929039

Surge arrester with SMA connection and integrated spark gap. Remote supply possible.

Ürün kimlikleri

SKU: 929039

EAN: 4013364135185

GTIN: 4013364135185

MPN: DGA G SMA

Kategoriler

Switchgear & Circuit Protection Circuit Breakers RCDs

Frequency	0.0 - 5800.0 MHz
Connection 1	SMA
Earthing via	Other

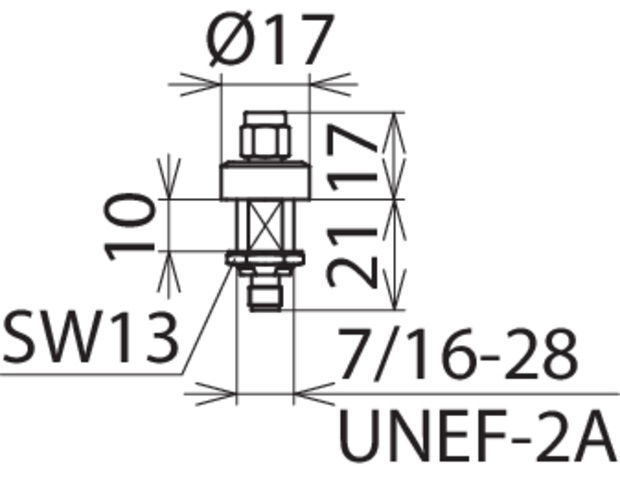

Assembly width	17 mm
Mounting method	Connector/cable adapter
Limiting frequency	-
Nominal voltage AC
Nominal voltage DC
Nominal load current	2 A
Signal disconnection	hayır
Explosion-tested version	-
Signalling at the device	-
Degree of protection (IP)	IP65
Pro-active thermo-control	-
Max. continuous voltage AC	-
Max. continuous voltage DC	135 V
With remote signalling contact	-
Voltage protection level core/core	-
Voltage protection level core/earth	-
Lightning impulse current (10/350 µs)	1 kA
Nominal discharge surge current (8/20)	5 kA
Number of conductors (without earthing)	1
Voltage protection level core/signal ground	700 V
Voltage protection level signal ground/protective ground	-

Deeplink product page
Circuit diagram
