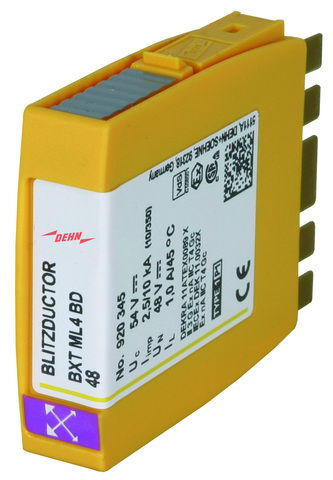

Combined arrester module for 2 pairs BLITZDUCTOR XT with LifeCheck
Space-saving combined lightning current and surge arrester module with LifeCheck feature for protecting two pairs of unearthed balanced interfaces. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.
Ürün kimlikleri
SKU: 920345
EAN: 4013364108998
GTIN: 4013364108998
MPN: BXT ML4 BD 48
Teknik özellikler
| Frequency | |
| Connection 1 | Screw terminal |
| Earthing via | DIN rail (top hat rail) |
| Assembly width | 12 mm |
| Mounting method | On basic element |
| Limiting frequency | 8.7 MHz |
| Nominal voltage AC | |
| Nominal voltage DC | 48.0 - 48.0 V |
