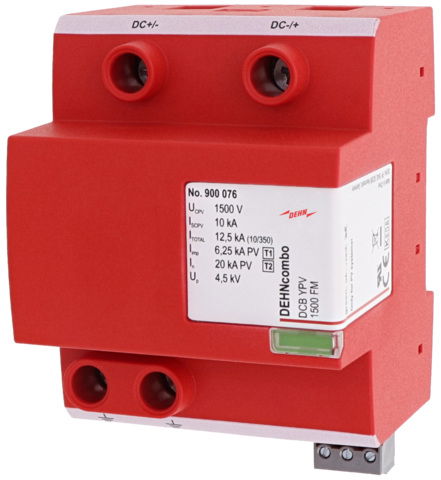

DEHNcombo YPV FM combined arrester for PV systems up to 1500 V DC
Multipole type 1 and type 2 combined lightning current and surge arrester for DEHNcombo YPV photovoltaic generator circuits of type 1 and type 2, according to EN 61643-31 with three-step DC switching device. Combined disconnection and short-circuiting device. For protecting photovoltaic inverters against surges and even direct lightning strikes. For use in accordance with IEC 60364-7-712:2002-05 (Installation of photovoltaic power supply systems).
Ürün kimlikleri
SKU: 900076
EAN: 6942299504552
GTIN: 6942299504552
MPN: DCB YPV 1500 FM
Teknik özellikler
| Test class | Type 1 + 2 |
| Max. PV-voltage | 1500 V |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of poles | 2 |
| Construction size | 4 modular spacing |
| Remote signalling | evet |
| Nominal voltage AC | - |
| Nominal voltage DC | - |
