DEHNcon-H HVI Cond. w. supp. tube -KIT- L 1950mm w. air-ter. rod 22/10 L 2500mm

DEHNcon-H HVI Cond. w. supp. tube -KIT- L 1950mm w. air-ter. rod 22/10 L 2500mm

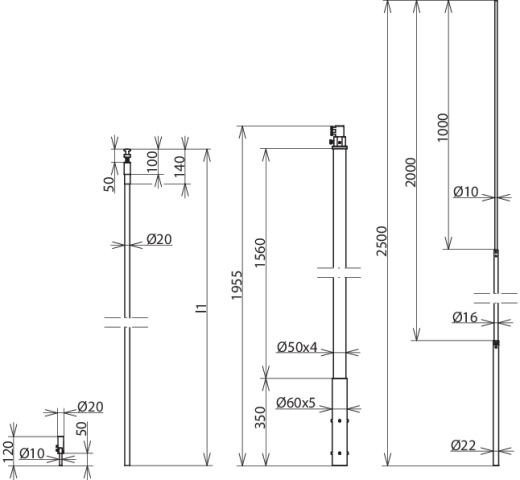

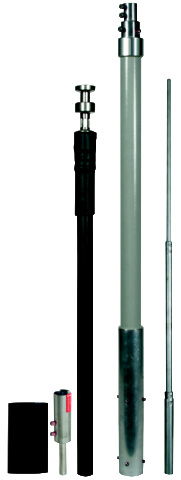

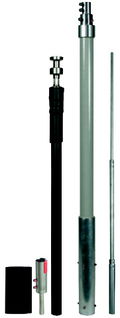

Air-termination mast for top mount on roof rafter brackets, for the sub-roof installation of the HVI Conductor. The HVI Conductor is fed through the mast support of the roof rafter bracket and installed in the region of the counter/roof battens. Version HVI Conductor inside of the supporting tube with internal sealing end and an air-termination rod D16 / 10 mm, length 2500 mm and an earth connection element.

Ürün kimlikleri

SKU: 819247
EAN: 4013364260900
GTIN: 4013364260900
MPN: HVI 20 M L6M SR1955 FS2500 DSH GFK AL

Kategoriler

Özellikler

Colour
Black
Weight
48 kg/100 m
Max. tensile load
950 N
Number of strands
7
Conductor category
Class 2 = stranded
Conductor material
Copper
Diameter conductor
5 mm
Sheathing material
Crosslinked polyethylene (XLPE)
Surface protection
Untreated
Material insulation
Polyethylene (PE)
Conductor cross section
19 mm²
Material quality conductor
-
Suitable for EX-applications
evet
Outer diameter incl. sheat/cover
20 mm
Characteristic conductor material
-
High-voltage-proof insulated model
evet
Max. equivalent separation distance s (in air)
0.75 m
Max. equivalent separation distance s (solid building materials)
1.5 m
