Type1+2+3 combined arrester DEHNshield ZP 2 for TNC systems

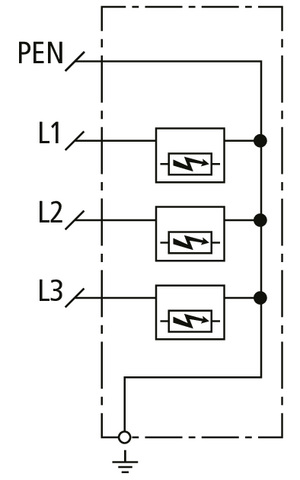

Tested type 1 + type 2 + type 3 combined arrester according to IEC 61643-11 for TN-C systems (3+0 configuration); can be installed completely without tools thanks to click + power connection method for 40 mm busbar systems and push-in earthing terminal; for use in the main power supply system according to IEC 60634-4-44 clause 443 of buildings with an external lightning protection system (class of LPS III/IV). A suitable cover clip according to DIN VDE 0603-1 for every standard meter panel is included in delivery.
Ürün kimlikleri
SKU: 909530
EAN: 4013364424753
GTIN: 4013364424753
MPN: DSH ZP 2 TNC 255
Kategoriler
Özellikler
|
Test class
|
Type 1 and 2 and 3
|
|
Max. PV-voltage
|
-
|
|
Mounting method
|
Busbar
|
|
Number of poles
|
3
|
|
Construction size
|
-
|
|
Remote signalling
|
-
|
|
Nominal voltage AC
|
230 V
|
|
Nominal voltage DC
|
-
|
|
Specific energy (W/R)
|
39.06 kJ/Ohm
|
|
Integrated backup fuse
|
-
|
|
System configuration DC
|
-
|
|
System configuration IT
|
-
|
|
System configuration TN
|
-
|
|
System configuration TT
|
hayır
|
|
Signalling at the device
|
Optical
|
|
Voltage protection level
|
1.5 kV
|
|
Degree of protection (IP)
|
IP30
|
|
System configuration TN-C
|
evet
|
|
System configuration TN-S
|
hayır
|
|
Max. continuous voltage AC
|
255 V
|
|
Max. continuous voltage DC
|
-
|
|
System configuration other
|
-
|
|
System configuration TN-C-S
|
hayır
|
|
Voltage protection level L-N
|
-
|
|
Voltage protection level L-PE
|
-
|
|
Voltage protection level N-PE
|
-
|
|
Voltage protection level (DC+ - DC-)
|
-
|
|
Overcurrent protected voltage tapping
|
hayır
|
|
Lightning impulse current (10/350 µs)
|
37.5 kA
|
|
Voltage switching spark gap technology
|
evet
|
|
Follow current extinguishing capability
|
25 kA
|
|
Voltage protection level (DC+/DC- - PE)
|
-
|
|
Max. conductor cross section flexible (fine-strand)
|
-
|
|
Max. conductor cross section solid (solid, stranded)
|
25 mm²
|
|
Max. overcurrent protection device, series connection (fuse)
|
160 A
|
|
Max. overcurrent protection device, parallel connection (fuse)
|
160 A
|
|
Energy-coordinated protection effect with regard to the terminal equipment
|
evet
|
