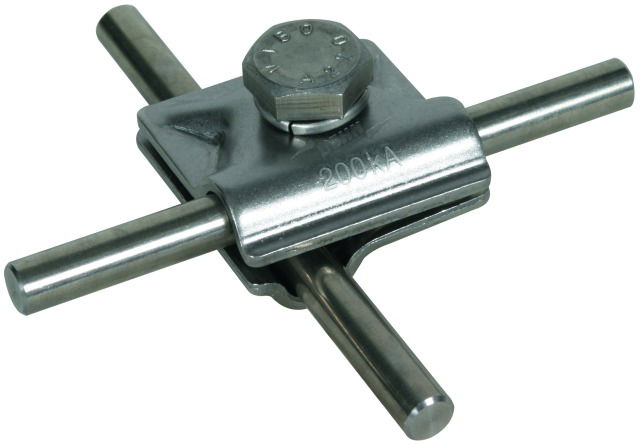

MV clamp StSt 200kA f. Rd 8-10mm w. hexagon screw
Multipurpose connecting clamp with spring washer for universal use as cross, T and parallel clamp. Tested for lightning current carrying capability up to 200 kA (10/350 μs) based on EN 62561-1. Two-piece design with hexagon screw and thread in the base part.
Ürün kimlikleri
SKU: 390209
EAN: 4013364158245
GTIN: 4013364158245
MPN: MVK 200 8.10 SKM10X30 V2A
Teknik özellikler
| Material | Stainless steel 304 (V2A) |
| Type of connector | T-/cross-/parallel connector |
| Surface protection | Untreated |
| Width flat conductor 1 | |
| Width flat conductor 2 | |
| Type of fastening screws | Hexagon screw |
| Diameter round conductor 1 | 8.0 - 10.0 mm |
| Diameter round conductor 2 | 8.0 - 10.0 mm |
