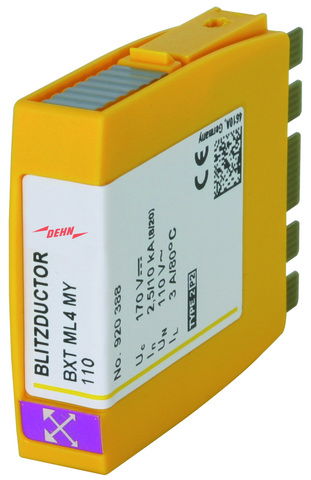

Surge arrester module BLITZDUCTOR XT with Y circuit
Space-saving surge arrester module with LifeCheck feature for protecting four lines of stranded signal interfaces. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.
Ürün kimlikleri
SKU: 920388
EAN: 4013364137370
GTIN: 4013364137370
MPN: BXT ML4 MY 110
Kategoriler
Özellikler
|
Frequency
|
|
|
Connection 1
|
Screw terminal
|
|
Earthing via
|
Other
|
|

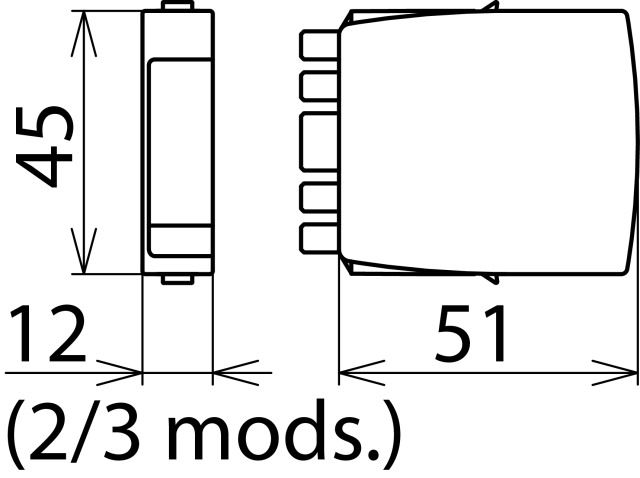

Assembly width
|
12 mm
|
|
Mounting method
|
On basic element
|
|
Limiting frequency
|
4.5 MHz
|
|
Nominal voltage AC
|
|
|
Nominal voltage DC
|
110.0 - 110.0 V
|
|
Nominal load current
|
3.0 A
|
|
Signal disconnection
|
-
|
|
Explosion-tested version
|
-
|
|
Signalling at the device
|
-
|
|
Degree of protection (IP)
|
IP20
|
|
Pro-active thermo-control
|
evet
|
|
Max. continuous voltage AC
|
-
|
|
Max. continuous voltage DC
|
-
|
|
With remote signalling contact
|
-
|
|
Voltage protection level core/core
|
300 V
|
|
Voltage protection level core/earth
|
700 V
|
|
Lightning impulse current (10/350 µs)
|
-
|
|
Nominal discharge surge current (8/20)
|
10 kA
|
|
Number of conductors (without earthing)
|
4
|
|
Voltage protection level core/signal ground
|
-
|
|
Voltage protection level signal ground/protective ground
|
-
|
