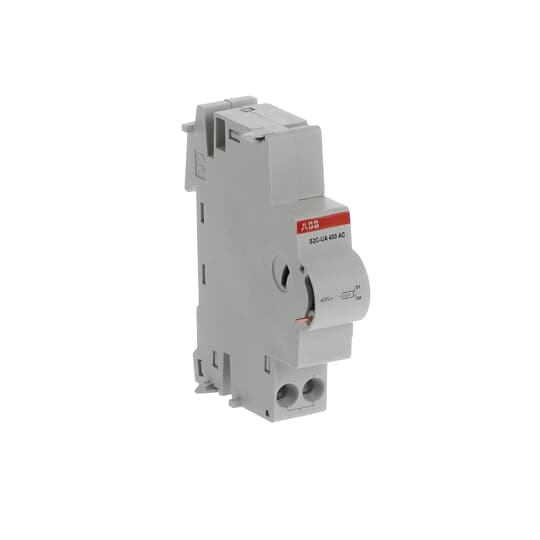

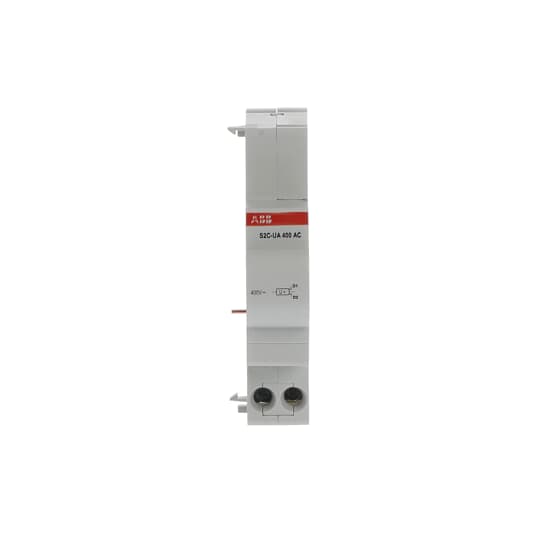

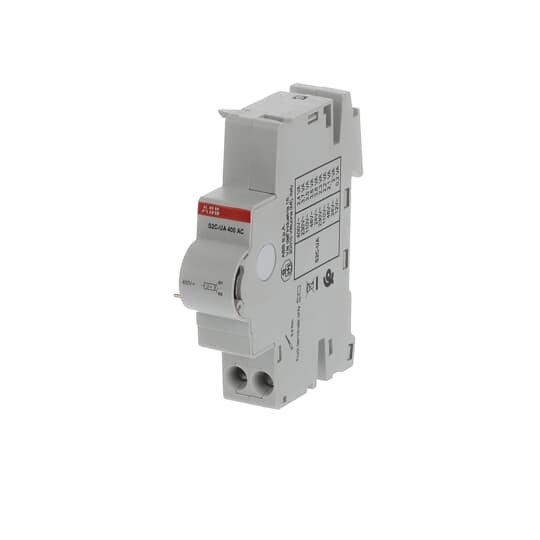

Undervoltage Release
The S2C-UA 400 AC undervoltage release has the function to protect the load in case of a voltage drop included between 70% and 35% of its rated value. Positive safety (device tripping when the voltage is disconnected) emergency stop by means of a button. Suitable for MCBs S200 series, RCCBs F200 series and RCBOs DS201, DS202C, DS200 series. It can be used with MCBs SN201 series by means of SN201-IH interface module. Rated voltage: 400V a.c.
Ürün kimlikleri
SKU: 2CSS200911R0006
EAN: 8012542840206
GTIN: 8012542840206
MPN: S2C-UA 400 AC
Kategoriler
Özellikler
|
Rated voltage
|
400 V
|
|
Device fitting
|
Miniature circuit breaker (MCB)
|
|
Additional equipment
|
Under voltage coil
|
|
Rated switch current
|
-
|
|
Installed at the factory
|
hayır
|
|
Voltage type for actuating
|
-
|
|
Number of fault-signal switches
|
1
|
|
Width in number of modular spacings
|
-
|
|
Number of contacts as change-over contact
|
-
|
|
With auto test for earth leakage function
|
hayır
|
|
Number of contacts as normally open contact
|
-
|
|
Suitable for max. current main contact unit
|
-
|
|
Number of contacts as normally closed contact
|
-
|
|
Suitable for max. number of poles main contact unit (total)
|
-
|
