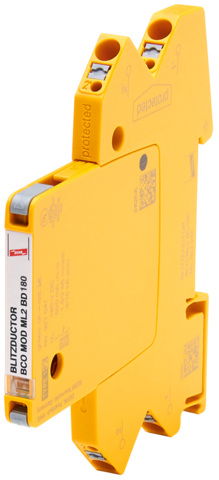

Modular combined arrester for 1 pair BLITZDUCTORconnect with status indication

Name: Modular combined arrester for 1 pair BLITZDUCTORconnect with status indication
Brand: DEHN
SKU: 927247

Space-saving, modular combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair of unearthed balanced interfaces. With signal disconnection for maintenance purposes.

Ürün kimlikleri

SKU: 927247

EAN: 4013364468665

GTIN: 4013364468665

MPN: BCO ML2 BD 180

Kategoriler

Switchgear & Circuit Protection Circuit Breakers MCBs RCBOs RCDs

Teknik özellikler

Frequency
Connection 1	Push-in terminal
Earthing via	DIN rail (top hat rail)

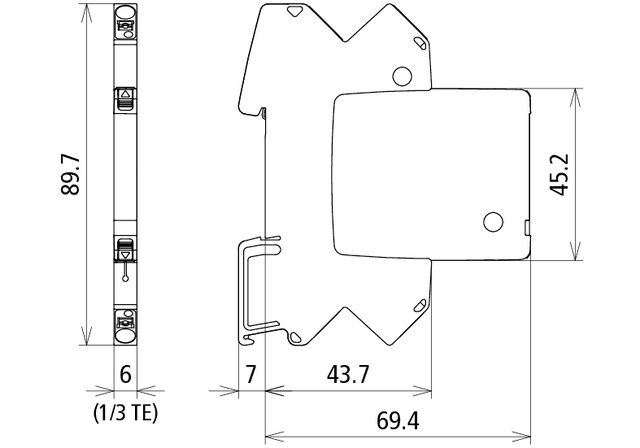

Assembly width	6 mm
Mounting method	DIN rail (top hat rail) 35 mm
Limiting frequency	10 MHz
Nominal voltage AC
Nominal voltage DC	180.0 - 180.0 V
Nominal load current	0.5 A
Signal disconnection	evet
Explosion-tested version	evet
Voltage protection level	-
Degree of protection (IP)	IP20
Pro-active thermo-control	evet
Max. continuous voltage AC	127 V
Max. continuous voltage DC	180 V
With remote signalling contact	hayır
Voltage protection level core/core	420 V
Voltage protection level core/earth	800 V
Lightning impulse current (10/350 µs)	3 kA
Nominal discharge surge current (8/20)	10 kA
Number of conductors (without earthing)	2
Voltage protection level core/signal ground	-
Voltage protection level signal ground/protective ground	-
