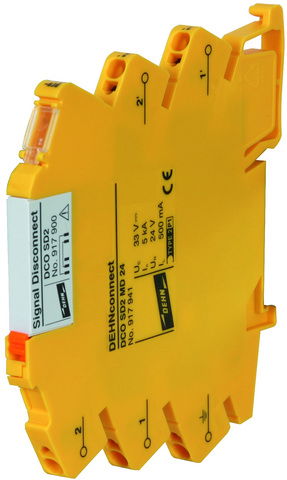

Surge arrester terminal block 2-pole DEHNconnect SD2

Name: Surge arrester terminal block 2-pole DEHNconnect SD2
Brand: DEHN
SKU: 917941

DEHNconnect SD2 terminal block with integrated surge protection. Energy-coordinated two-stage arrester that has no leakage current to earth for protecting an unearthed pair as well as balanced interfaces. Signal circuits can be disconnected by removing the plug-in part.

Ürün kimlikleri

SKU: 917941

EAN: 4013364150607

GTIN: 4013364150607

MPN: DCO SD2 MD 24

Kategoriler

Terminals, Connectors & Interconnects Terminal Blocks

Teknik özellikler

Frequency
Connection 1	Push-in terminal
Earthing via	DIN rail (top hat rail)
Assembly width	6 mm
Mounting method	DIN rail (top hat rail) 35 mm
Limiting frequency	6 MHz
Nominal voltage AC
Nominal voltage DC	24.0 - 24.0 V
Nominal load current	0.5 A
Signal disconnection	evet
Explosion-tested version	evet
Signalling at the device	None
Degree of protection (IP)	Other
Pro-active thermo-control	-
Max. continuous voltage AC	23 V
Max. continuous voltage DC	33 V
With remote signalling contact	-
Voltage protection level core/core	45 V
Voltage protection level core/earth	650 V
Lightning impulse current (10/350 µs)	-
Nominal discharge surge current (8/20)	10 kA
Number of conductors (without earthing)	2
Voltage protection level core/signal ground	-
Voltage protection level signal ground/protective ground	-
