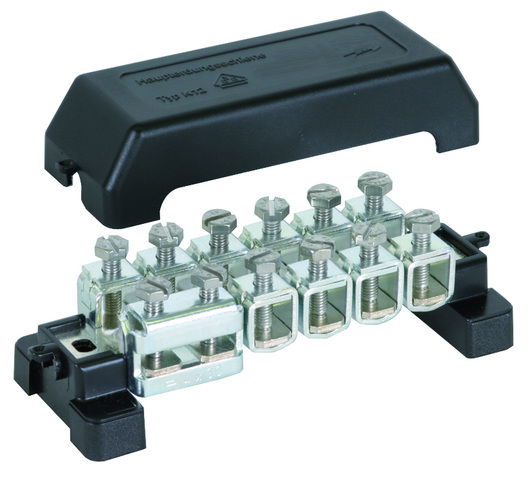

K12 equipotential bonding bar with UV-resistant cover

Name: K12 equipotential bonding bar with UV-resistant cover
Brand: DEHN
SKU: 563201

Equipotential bonding busbar according to EN 62561-1, for protective and functional equipotential bonding according to IEC 60464-4-41/60364-5-54 (main earthing busbar) and lightning equipotential bonding according to IEC/EN 62305-3. UV-stabilised design, tested according to DIN VDE 0618-1, with CE sign, snap-on terminals St/gal Zn, fixing frames and grey (hologen-free) plastic cover, cover is sealable and can be labelled.

Ürün kimlikleri

SKU: 563201

EAN: 4013364101234

GTIN: 4013364101234

MPN: PAS 11AK UV

Kategoriler

Switchgear & Circuit Protection Busbars

Teknik özellikler

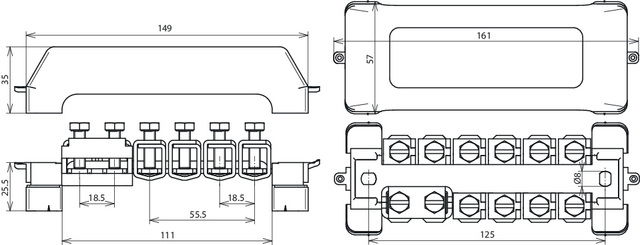

Model	With covering cap
Width	60 mm
Height	60 mm
Length	160 mm
Insulator	-
Construction type	Surface mounting modular
Material of clamp	Steel
Surface of the clamp	Galvanic tinned
Explosion-tested version	-
Material of contact rail	Copper
Surface of the contact rail	Galvanic tinned
Number of connections flat conductor 30 mm	1
Number of connections flat conductor 40 mm	-
Number of connections round conductor 8 mm	-
Number of connections round conductor 10 mm	-
Number of connections round conductor total	-
Number of connections round conductor 8-10 mm	-
Number of connections conductor to 6 mm² fixed	-
Number of connections conductor to 16 mm² fixed	-
Number of connections conductor to 25 mm² fixed	-
Number of connections conductor to 95 mm² fixed	10
