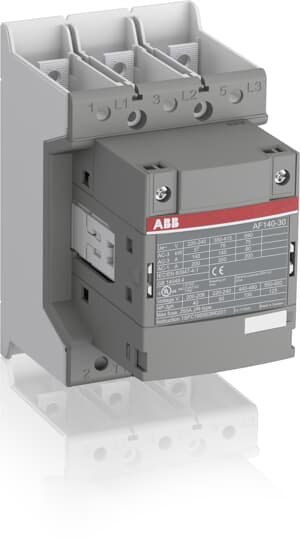

AF140-30-00B-12 Contactor

Name: AF140-30-00B-12 Contactor
Brand: ABB
SKU: 1SFL447002R1200

The AF140-30-00B-12 is a 3 pole - 690 V IEC or 600 V UL contactor with Main Circuit Bars, controlling motors up to 75 kW / 400 V AC (AC-3) or 100 hp / 480 V UL and switching power circuits up to 200 A (AC-1) or 200 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Ürün kimlikleri

SKU: 1SFL447002R1200

EAN: 7320500481363

GTIN: 7320500481363

MPN: AF140-30-00B-12

Kategoriler

Switchgear & Circuit Protection Switchgear Low Voltage Switchgear

ETIM grubu

Low-voltage industrial components

Teknik özellikler

EFI00008	3.5433090
EFI00040	5.9055150
EFI00049	4.9606326
Modular version	hayır
Rated operation power NEMA	37.2850 kW
Voltage type for actuating	AC/DC
Rated control supply voltage DC	48 - 130 V
Rated operation power at AC-3, 400 V	75 kW
Rated operation power at AC-4, 400 V	-
Rated control supply voltage AC 50 Hz	48 - 130 V
Rated control supply voltage AC 60 Hz	48 - 130 V
Rated operation current Ie at AC-1, 400 V	200 A
Rated operation current Ie at AC-3, 400 V	140 A
Rated operation current Ie at AC-4, 400 V	-
Type of electrical connection of main circuit	Screw connection
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact
Number of auxiliary contacts as normally open contact
Number of auxiliary contacts as normally closed contact
