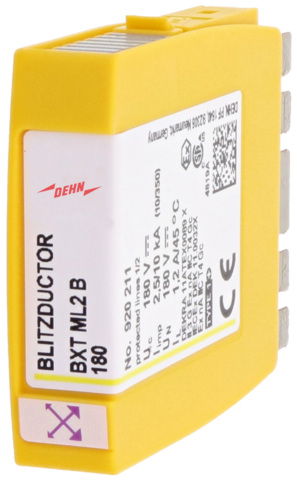

Combined 2-pole arrester module BLITZDUCTOR XT with LifeCheck

Combined 2-pole arrester module BLITZDUCTOR XT with LifeCheck

Space-saving two-pole lightning current arrester module with LifeCheck feature and shield earthing for almost all applications. For use in conjunction with a downstream surge arrester or combined lightning current and surge arrester with a lower or equal voltage level. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.

Ürün kimlikleri

SKU: 920211
EAN: 4013364120570
GTIN: 4013364120570
MPN: BXT ML2 B 180

Teknik özellikler

Frequency
Connection 1 Screw terminal
Earthing via DIN rail (top hat rail)
Assembly width 12 mm
Mounting method On basic element
Limiting frequency -
Nominal voltage AC
Nominal voltage DC 180.0 - 180.0 V
Signal disconnection -
Voltage protection level -
Pro-active thermo-control evet
Max. continuous voltage DC 180 V
Voltage protection level core/core 650 V
Lightning impulse current (10/350 µs) 10 kA
Number of conductors (without earthing) 2
Voltage protection level signal ground/protective ground -
