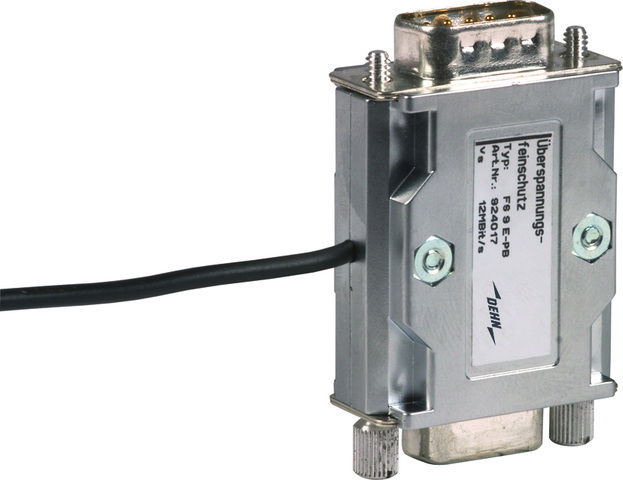

Surge arrester, D-Sub, 9-pole

Name: Surge arrester, D-Sub, 9-pole
Brand: DEHN
SKU: 924017

Surge arrester for Profibus-DP. 9-pin SUB-D version, pin 6 unprotected for the programming interface.

Ürün kimlikleri

SKU: 924017

EAN: 4013364045934

GTIN: 4013364045934

MPN: FS 9E PB 6

Kategoriler

Wiring Accessories & Installation Wiring Accessories

Frequency
Connection 1	D-Sub 9-pole
Earthing via	Separate conductor

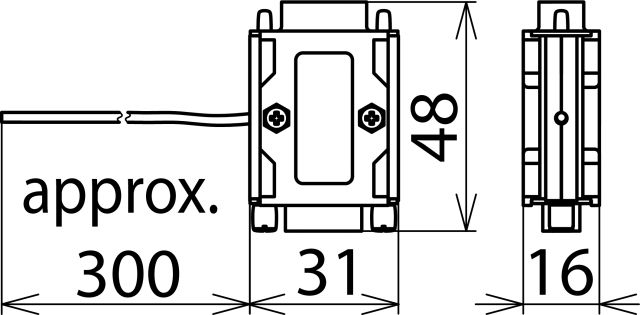

Assembly width	31 mm
Mounting method	Other
Limiting frequency	90 MHz
Nominal voltage AC
Nominal voltage DC	6.0 - 6.0 V
Nominal load current	-
Signal disconnection	-
Explosion-tested version	-
Signalling at the device	-
Degree of protection (IP)	IP40
Pro-active thermo-control	-
Max. continuous voltage AC	-
Max. continuous voltage DC	7 V
With remote signalling contact	-
Voltage protection level core/core	25 V
Voltage protection level core/earth	-
Lightning impulse current (10/350 µs)	-
Nominal discharge surge current (8/20)	0.4 kA
Number of conductors (without earthing)	5
Voltage protection level core/signal ground	25 V
Voltage protection level signal ground/protective ground	18 V
