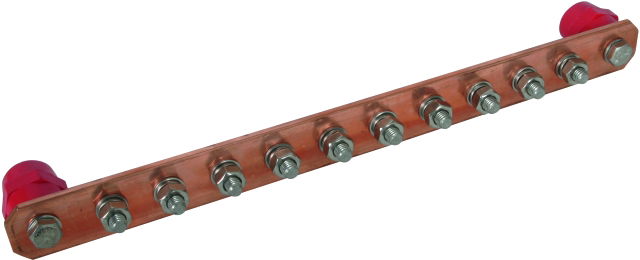

Equipotential bonding bar without cover Cu with M10 screws for 10 connections

Name: Equipotential bonding bar without cover Cu with M10 screws for 10 connections
Brand: DEHN
SKU: 472217

Equipotential busbar industry design, according to EN 62561-1, for the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to EN 62305-3. With insulator UP (duroplastic, red) with thread M10, UV stabilised and halogen-free. Also for use in potentially explosive atmospheres (secured against self-loosening of the screws). Design with 10 terminals - screw M10, spring washer and nut.

Ürün kimlikleri

SKU: 472217

EAN: 4013364090941

GTIN: 4013364090941

MPN: PAS I 10AP M10 CU

Kategoriler

Switchgear & Circuit Protection Busbars

Teknik özellikler

Model	Without covering cap
Width	40 mm
Height	60 mm
Length	435 mm
Insulator	evet
Construction type	Surface mounting fix
Material of clamp	-
Surface of the clamp	-
Explosion-tested version	evet
Material of contact rail	Copper
Surface of the contact rail	Untreated
Number of connections flat conductor 30 mm	-
Number of connections flat conductor 40 mm	-
Number of connections round conductor 8 mm	-
Number of connections round conductor 10 mm	-
Number of connections round conductor total	10
Number of connections round conductor 8-10 mm	-
Number of connections conductor to 6 mm² fixed	-
Number of connections conductor to 16 mm² fixed	-
Number of connections conductor to 25 mm² fixed	-
Number of connections conductor to 95 mm² fixed	-
