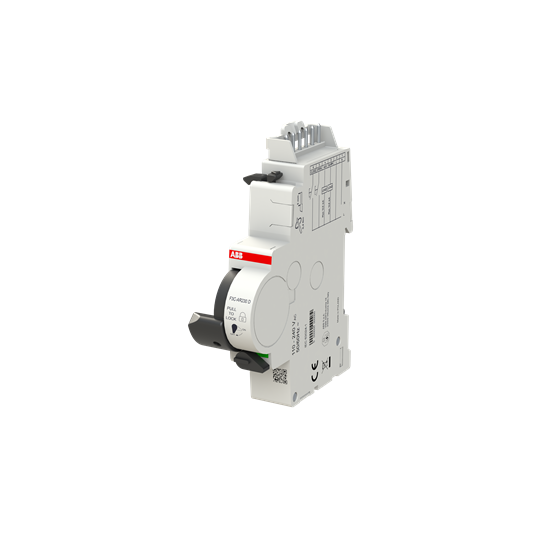

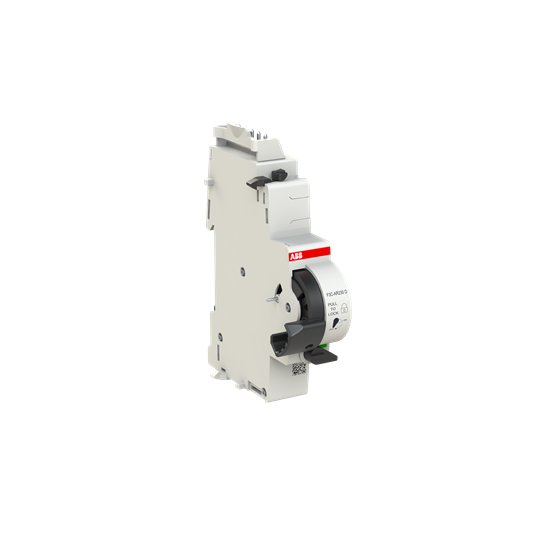

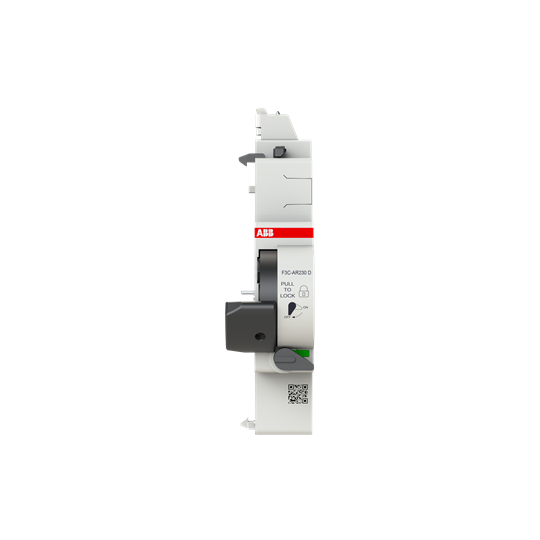

F3C-AR230 D Autoreclosing unit

Name: F3C-AR230 D Autoreclosing unit
Brand: ABB
SKU: 2CSF203998R0034

Auto-reclosing units are used to automatically operate the reclosing of the associated device in case of unwanted tripping. Suitable for F200 series up to 100 A and F200 B type up to 63 A

Ürün kimlikleri

SKU: 2CSF203998R0034

EAN: 8012542539650

GTIN: 8012542539650

MPN: F3C-AR230 D

Kategoriler

Switchgear & Circuit Protection Contactors & Motor Starters Distribution Boards 3-Phase Distribution Boards

ETIM grubu

Devices for distribution board-/surface mounting

Teknik özellikler

Rated voltage	240 V
Device fitting	Contactor/relay
Additional equipment	Monitoring unit with automatic reclosing
Rated switch current	-
Installed at the factory	hayır
Voltage type for actuating	-
Number of fault-signal switches
Width in number of modular spacings	1
Number of contacts as change-over contact	-
With auto test for earth leakage function	hayır
Number of contacts as normally open contact	-
Suitable for max. current main contact unit	-
Number of contacts as normally closed contact	-
Suitable for max. number of poles main contact unit (total)	-
