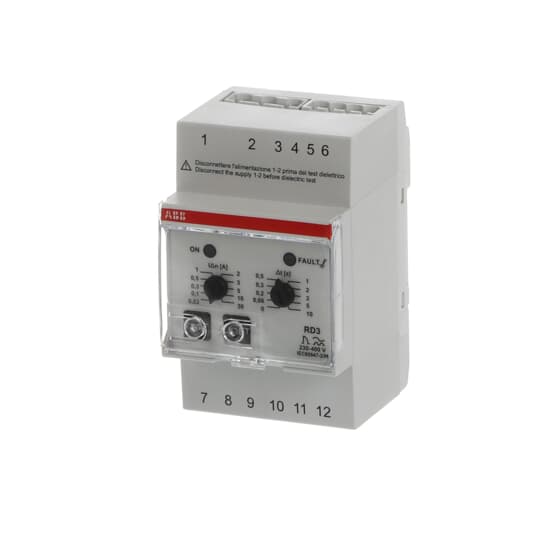

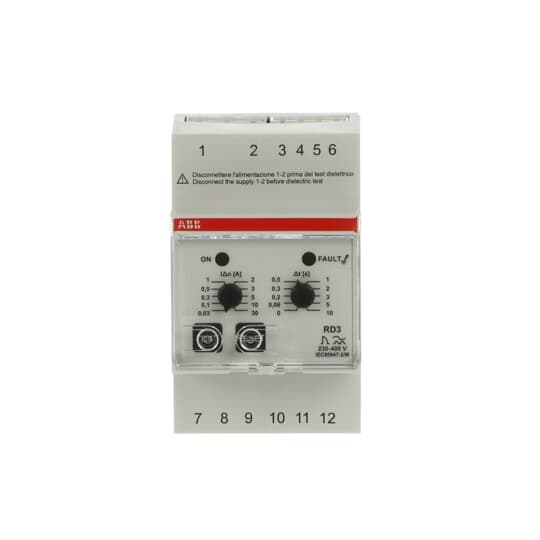

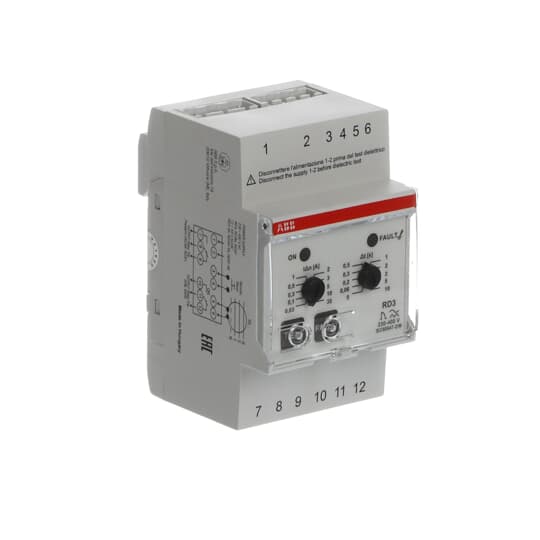

Residual Current Monitor

Name: Residual Current Monitor
Brand: ABB
SKU: 2CSJ201001R0002

The RD3 series of electronic residual current relays provides residual current protection and monitoring functions. This device can be used in conjunction with all MCBs of S200 series and Tmax range moulded case devices up to T5, for industrial installations.

Ürün kimlikleri

SKU: 2CSJ201001R0002

EAN: 8012542734833

GTIN: 8012542734833

MPN: RD3

ETIM Group

Relays

Teknik özellikler

Depth	65 mm
Width	52.8 mm
Height	85 mm
EFI00008	2.078736
EFI00040	3.34645
EFI00049	2.55905
Function	For mixed system
Rated voltage	400 - 400
Rated frequency
With detachable clamps	hayır
Response value amperage 1	500 - 500 mA
Response value amperage 2
Voltage type for actuating	-
Error registration possible	hayır
Type of electric connection	-
Rated control supply voltage DC
Indication of difference current	evet
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Max. permitted delay-on energization time	10 s
Number of contacts as change-over contact	-
Min. adjustable delay-on energization time
Number of contacts as normally open contact	-
Number of contacts as normally closed contact	-

Belgeler

Deeplink product page
Deeplink REACH
Instructions for use
Product data sheet
Declaration RoHS
