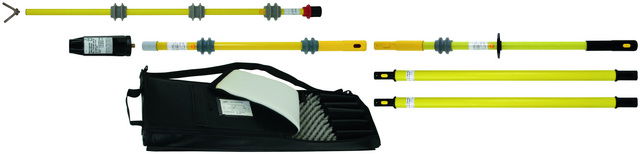

Voltage detector kit PHE III 60...110kV Cat.S f.switchgear/overhead lines,CODED
Capacitive PHE III voltage detector kit as a complete device in accordance with EN/IEC 61243-1 (DIN VDE 0682-411) for verifying safe isolation from supply voltage on all poles at the work location in accordance with EN 50110-1 (DIN VDE 0105-100) in electrical installations. Category "S" for switchgear installations and overhead lines. Suitable for use in wet weather conditions. With visual and acoustic indication and self-testing element, transport case included.
Ürün kimlikleri
SKU: 769712
EAN: 4013364242517
GTIN: 4013364242517
MPN: PHE3S60 110S CSN7774
Teknik özellikler
| Model | 1-pole |
| Category | S |
| Frequency | 50.0 - 50.0 Hz |
| Application | Switchgear and power cable for overhead lines |

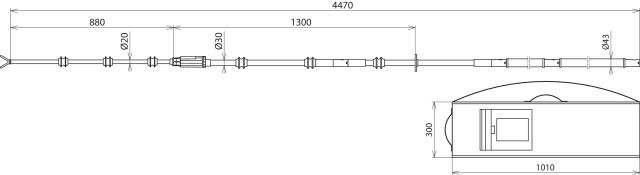

| Total length | 2840.0 - 4470.0 mm |
| Voltage type | AC |
| Immersing depth | 880 mm |
| Nominal voltage | 60.0 - 110.0 kV |
