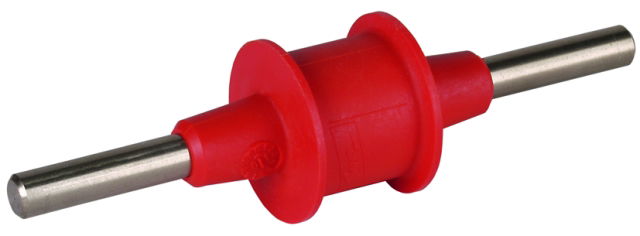

Isolating spark gap with 2 connections, Rd 10mm, StSt
Isolating spark gap for indirectly connecting / earthing functionally isolated installation parts under lightning conditions. For lightning equipotential bonding according to IEC 62305 as well as for use in IT installations according to IEC 60364-5-54.
Ürün kimlikleri
SKU: 923021
EAN: 4013364036161
GTIN: 4013364036161
MPN: KFSU
Kategoriler
Teknik özellikler
| Connection | Round 10 mm |
| Surface protection | - |
| Material of connection | Stainless steel 304 (V2A) |
| Suitable for connection | Other |
| Explosion-tested version | - |
| Degree of protection (IP) | IP65 |
| Rated impulse sparkover voltage | 4 kV |
| Lightning impulse current (10/350 µs) | - |
