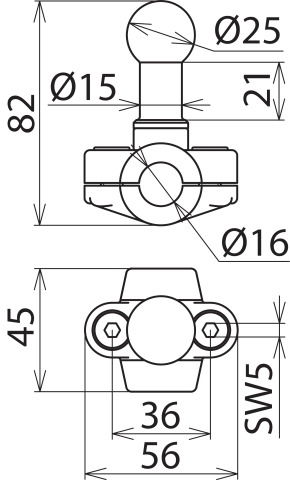

Fixed ball point D 25mm, clamp type A for round conductors 16mm
Fixed ball point D = 20 mm for round copper conductors for use as phase-side and earth-side point of connection in accordance with EN/IEC 61230 (DIN VDE 0683-100) on the conductor and the earthing system. Stainless steel fixing screws.
Ürün kimlikleri
SKU: 725016
EAN: 4013364003781
GTIN: 4013364003781
MPN: KFP 25 RL 16
Kategoriler
Teknik özellikler
| Mounting method | For circular conductor |
| Construction type | Straight |
| Diameter fixed point | - |
| Max. short circuit current | 26.5 kA |
| Suitable for round conductors | evet |
| Max. wire cross section copper | 95 mm² |
| Connection of the earthing and short circuit device | Fixed ball point 25 mm |
