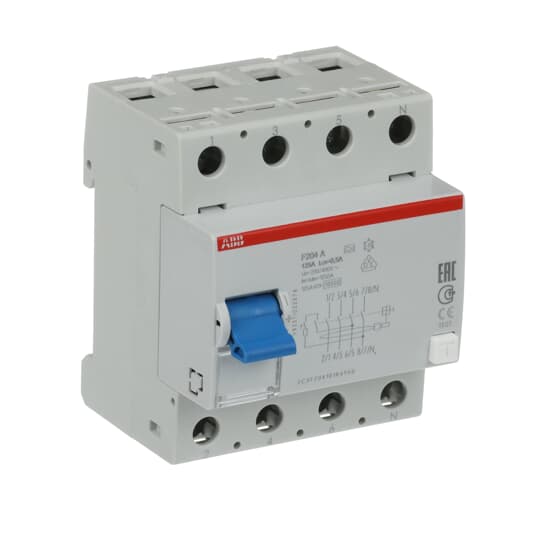

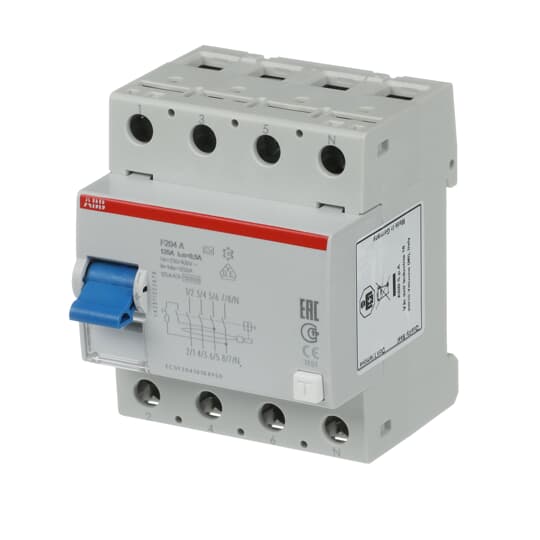

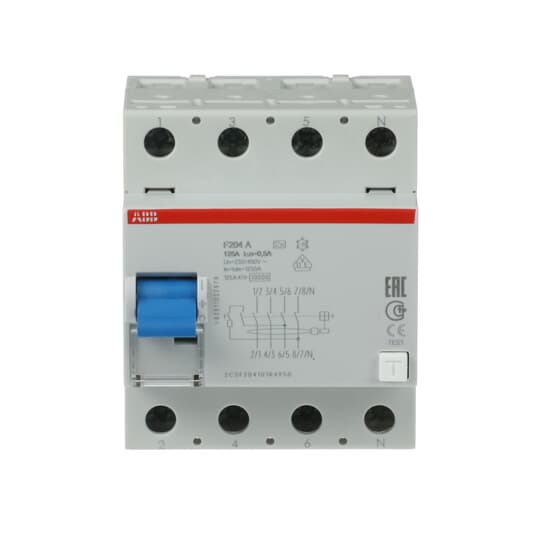

Residual Current Circuit Breaker - 4P - Type A - 500 mA - 125 A

Name: Residual Current Circuit Breaker - 4P - Type A - 500 mA - 125 A
Brand: ABB
SKU: 2CSF204101R4950

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.

Ürün kimlikleri

SKU: 2CSF204101R4950

EAN: 8012542942207

GTIN: 8012542942207

MPN: F204 A-125/0.5

Kategoriler

Switchgear & Circuit Protection Circuit Breakers RCDs

ETIM Group

Circuit breakers and fuses

Teknik özellikler

EFI00218	2.71653
EFI07337	0.0542\|0.0542
EFI07343	0\|0.0387
EFI07515	-13\|104
Frequency	50 Hz
Voltage type	-
Rated current	125 A
Rated voltage	400 V
Built-in depth	69 mm
Explosion-proof	-
Mounting method	DIN rail
Number of poles	4
Pollution degree	2
Rated fault current	0.5 A
Leakage current type	A
Selective protection	hayır
Surge current capacity	0.25 kA
With interlocking device	evet
Degree of protection (IP)	IP2X
Rated insulation voltage Ui	500 V
Short-time delayed tripping	hayır
Additional equipment possible	evet
Width in number of modular spacings	4
Ambient temperature during operating	-25 - 40 °C
Rated impulse withstand voltage Uimp	4 kV
Short-circuit breaking capacity (Icw)	-
Connectable conductor cross section solid-core	35 - 35 mm²
Connectable conductor cross section multi-wired
