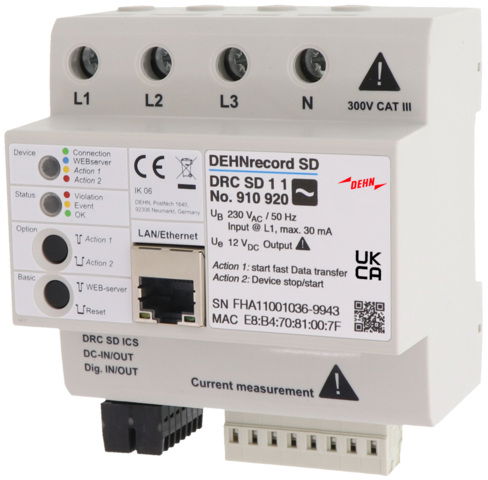

DEHNrecord SD multifunctional measuring and analysis device voltage supply 230 VAC

Integral, multifunctional measuring equipment based on edge computing in a compact housing for easy integration and retrofitting on DIN rails. Device for measuring the voltage quality according to EN 61000-4-30, class-A-certified, and limit values as per EN 50160. Measurement of temporary, power-frequency overvoltages according to EN50550. Communication link provided through Modbus TCP and MQTT 3.1 Azure.

Ürün kimlikleri

SKU: 910920
EAN: 4013364460263
GTIN: 4013364460263
MPN: DRC SD 1 1

Kategoriler

Test & Measurement Equipment Multimeters

Teknik özellikler

Depth 66 mm
Width 90 mm
Height 107 mm
Display None
Remote display evet
Supply voltage DC
Sampling frequency -
Data transfer via PQDif -
Supply voltage AC 60 Hz
Nominal voltage (Un) L-L
Number of digital inputs 3
Number of analogue inputs -
Number of analogue outputs -
Measuring range for frequency 42.5 - 57.5 Hz
Number of Ethernet connections 1
With audit logging (audit log) -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Number of voltage measurement inputs 4
Degree of protection (IP), front side IP20
With Role Based Access Control (RBAC) -
Web server with HTTPS transfer protocol evet
Accuracy class according to IEC 61000-4-30 A
Supporting protocol for IEC 61850 Ethernet -
Accuracy class active energy according to IEC 62053-22 Other
Measurement of harmonics in frequency range 2 kHz - 9 kHz -
