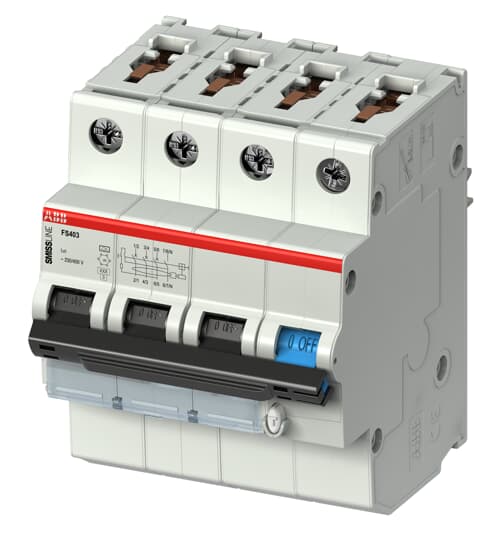

FS403MK-C6/0.3 Residual Current Circuit Breaker with Overcurrent Protection

Name: FS403MK-C6/0.3 Residual Current Circuit Breaker with Overcurrent Protection
Brand: ABB
SKU: 2CCL564330E0064

Pluggable Residual Current Circuit Breaker with overcurrent Protection for the SMISSLINE TP System acc. IEC/EN/DIN EN 61009-1, EN/DIN EN 61009-2-1 Rated breaking capacity Icn 10kAType F; AP-R (high immunity) Tripping characteristic C Rated current In 6A Rated sensitivity I Δn 0.3A Rated voltage Ue 240/415VAC

Ürün kimlikleri

SKU: 2CCL564330E0064

EAN: 7612271471095

GTIN: 7612271471095

MPN: FS403MK-C6/0.3

Kategoriler

Switchgear & Circuit Protection Circuit Breakers RCBOs RCDs

ETIM grubu

Circuit breakers and fuses

Teknik özellikler

EFI00218	3.58267
EFI07337	-\|-
EFI07343	0.0011\|0.0387
EFI07515	-13\|140
Frequency	50/60 Hz
Voltage type	AC
Rated current	6 A
Rated voltage	415 V
Built-in depth	91 mm
Pollution degree	2
Rated fault current	0.3 A
Leakage current type	F
Over voltage category	3
Current limiting class	3
Release characteristic	C
Surge current capacity	3 kA
Number of poles (total)	4
With interlocking device	evet
Degree of protection (IP)	IP20
Number of protected poles	3
Flush-mounted installation	hayır
Rated insulation voltage Ui	500 V
Disconnection characteristic	Short-time delayed
Anti-nuisance tripping version	-
Width in number of modular spacings	4
Ambient temperature during operating	-25 - 60 °C
Rated impulse withstand voltage Uimp	4 kV
Concurrently switching neutral conductor	evet
Connectable conductor cross section solid-core	0.75 - 35 mm²
Connectable conductor cross section multi-wired	0.75 - 10 mm²
Rated short-circuit breaking capacity according to EN 61009	10 kA
Rated short-circuit breaking capacity according to IEC 60947-2	25 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1	10 kA
