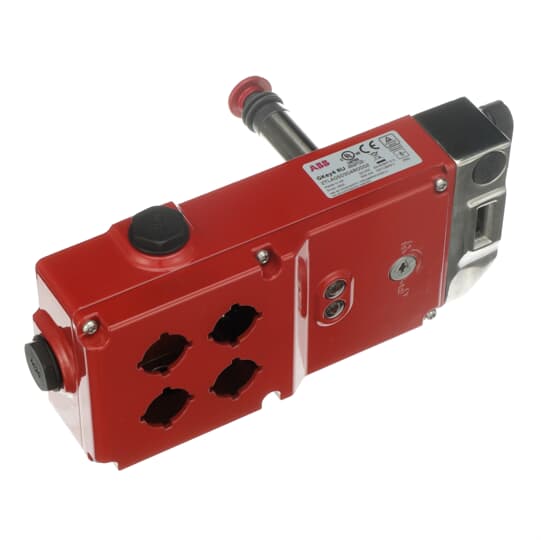

GKey4 RU Lock, complete
Safety lock GKey with 4 positions for pilot devices, die-cast housing, escape release and manual unlock function. Can be mounted on hinged doors and on sliding doors, both on the left and on the right. Delivered with mechanical tongue actuator, RFID actuator, entry cover and screw bit. GKey is a robust safety lock with a die cast housing for hinged and sliding doors. GKey offers an interlocking function reaching up to PL e/SIL 3 with high level coding. Power is needed to unlock GKey which makes GKey a safety lock. GKey is fitted with a rear escape release button and manual unlocking (auxiliary release). GKey offers four positions for 22 mm pilot devices.
Ürün kimlikleri
SKU: 2TLA050304R0002
EAN: 7350024484526
GTIN: 7350024484526
MPN: GKey4 RU
Kategoriler
Özellikler
|
EFI07094
|
9.09447
|
|
EFI07283
|
4.05511
|
|
EFI07334
|
6.06298
|
|
EFI07515
|
-13.0|104.0
|
|
Width sensor
|
231 mm
|
|
Coating housing
|
Powder coating
|
|
Height of sensor
|
103 mm
|
|
Housing material
|
-
|
|
Length of sensor
|
154 mm
|
|
Type of interface
|
Other
|
|
Guard locking force
|
3000 N
|
|
With escape release
|
evet
|
|
Type of guard locking
|
Operating current principle
|
|
With auxiliary release
|
evet
|
|
With status indication
|
evet
|
|
Construction type housing
|
Special construction
|
|
Degree of protection (IP)
|
IP65
|
|
Type of switching contact
|
Slow-action switch
|
|
Degree of protection (NEMA)
|
1
|
|
Type of electric connection
|
Other
|
|
Suitable for safety functions
|
evet
|
|
Explosion safety category for gas
|
-
|
|
Explosion safety category for dust
|
-
|
|
Number of safety auxiliary contacts
|
-
|
|
Ambient temperature during operating
|
-25 - 40 °C
|
|
Number of contacts as change-over contact
|
-
|
|
Rated operation current Ie at AC-15, 24 V
|
3 A
|
|
Rated operation current Ie at DC-13, 24 V
|
0.2 A
|
|
Rated operation current Ie at AC-15, 125 V
|
3 A
|
|
Rated operation current Ie at AC-15, 230 V
|
3 A
|
|
Rated operation current Ie at DC-13, 125 V
|
-
|
|
Rated operation current Ie at DC-13, 230 V
|
-
|
|
Type of interface for safety communication
|
Other
|
|
Number of contacts as normally open contact
|
4
|
|
Rated control supply voltage magnet drive DC
|
24 - 24 V
|
|
Number of contacts as normally closed contact
|
2
|
|
Rated control supply voltage magnet drive AC 50 Hz
|
|
|
Rated control supply voltage magnet drive AC 60 Hz
|
|
