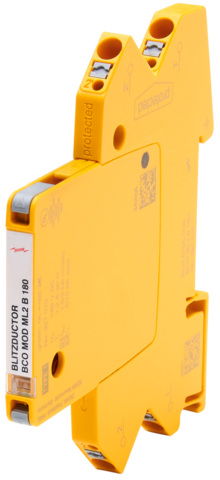

Arrester for 2 single cores BLITZDUCTORconnect w. fault indication
Space-saving, modular lightning current arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines for lightning equipotential bonding as well as indirect earthing of shielded cables. With signal disconnection for maintenance purposes.
Ürün kimlikleri
SKU: 927210
EAN: 4013364405585
GTIN: 4013364405585
MPN: BCO ML2 B 180
Kategoriler
Özellikler
|
Frequency
|
|
|
Connection 1
|
Clamp
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Limiting frequency
|
300 MHz
|
|
Nominal voltage AC
|
-
|
|
Nominal voltage DC
|
180 V
|
|
Nominal load current
|
1.2 A
|
|
Explosion-tested version
|
evet
|
|
Signalling at the device
|
Optical
|
|
Voltage protection level
|
-
|
|
Pro-active thermo-control
|
evet
|
|
Max. continuous voltage AC
|
127 V
|
|
Max. continuous voltage DC
|
180 V
|
|
With remote signalling contact
|
-
|
|
Voltage protection level core/core
|
1100 V
|
|
Voltage protection level core/earth
|
800 V
|
|
Lightning impulse current (10/350 µs)
|
3 kA
|
|
Nominal discharge surge current (8/20)
|
10 kA
|
|
Voltage protection level core/signal ground
|
-
|
|
Voltage protection level signal ground/protective ground
|
-
|
