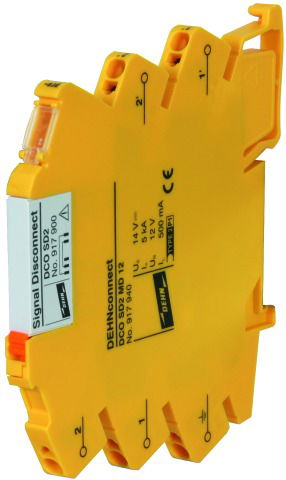

Surge arrester terminal block 2-pole DEHNconnect SD2
DEHNconnect SD2 terminal block with integrated surge protection. Energy-coordinated two-stage arrester that has no leakage current to earth for protecting an unearthed pair as well as balanced interfaces. Signal circuits can be disconnected by removing the plug-in part.
Ürün kimlikleri
SKU: 917940
EAN: 4013364150591
GTIN: 4013364150591
MPN: DCO SD2 MD 12
Teknik özellikler
| Frequency | |
| Connection 1 | Push-in terminal |
| Earthing via | DIN rail (top hat rail) |
| Assembly width | 6 mm |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Limiting frequency | 2.5 MHz |
| Nominal voltage AC | |
| Nominal voltage DC | 12.0 - 12.0 V |
