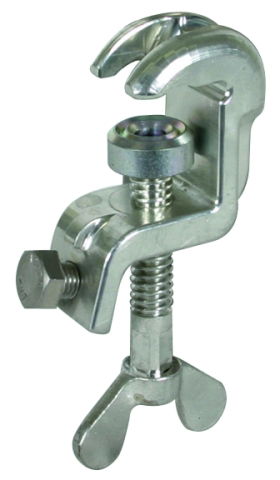

Universal earthing clamp K 20/25 Fl 20 T 15mm with wing screw
Universal earthing clamp with wing bolt for connecting the earthing cable to fixed ball points, T pins, round and flat conductors according to EN/IEC 61230 (DIN VDE 0683-100). PK1 anti-rotation element.
Ürün kimlikleri
SKU: 774034
EAN: 4013364114586
GTIN: 4013364114586
MPN: UEK 25 FS
Kategoriler
Teknik özellikler
| Application | Earth-side |
| Clamping range | 20.0 - 20.0 mm |
| Connection type | Fixed ball point 25 mm |
| For wire cross section | 16.0 - 120.0 mm² |
| Anti-rotation protection | evet |
| Max. short circuit current | 33.5 kA |
| Admission of the activation rod | - |
