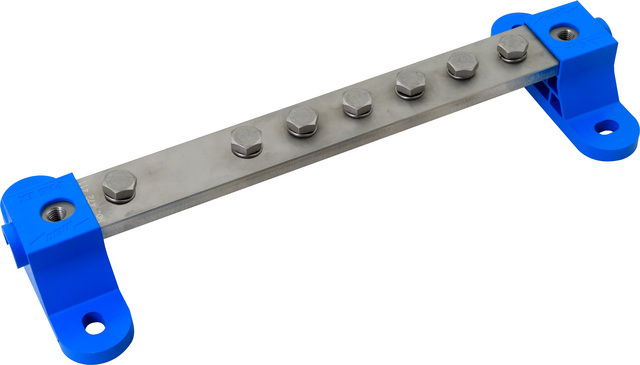

Equipotential bonding bar for Ex areas of zone 1/21, 2/22 for 7x cable lug
Non-sparking, Ex equipotential bonding bar for integrating metallic conductors and wires into the lightning equipotential bonding according to IEC 62305-3 as well as for protective and functional equipotential bonding according to IEC 60364-4-41/IEC 60364-5-54. For use in Ex zones 1 and 2 (gases, vapours, mists) and Ex zones 21 and 22 (dusts) explosion group IIC (safety factor 1) according to CLC 50703-2. Complies with temperature class T4 and IEC 62561-1 Lightning current carrying capability Class H (100kA). Screws secured against self-loosening according to VDE 0185-305-3 Supplement 2. Both indoor and outdoor installation permissible. To avoid whisker formation in hazardous areas, the use of tin-plated crimped cable lugs with a nickel barrier layer is recommended. The product has the following connections: 7x cable lug (M10 x 20 mm with spring washer)
Ürün kimlikleri
SKU: 472411
EAN: 4013364470460
GTIN: 4013364470460
MPN: PAS EX 7AP M10 V2A
Kategoriler
Özellikler
|
Model
|
Without covering cap
|
|

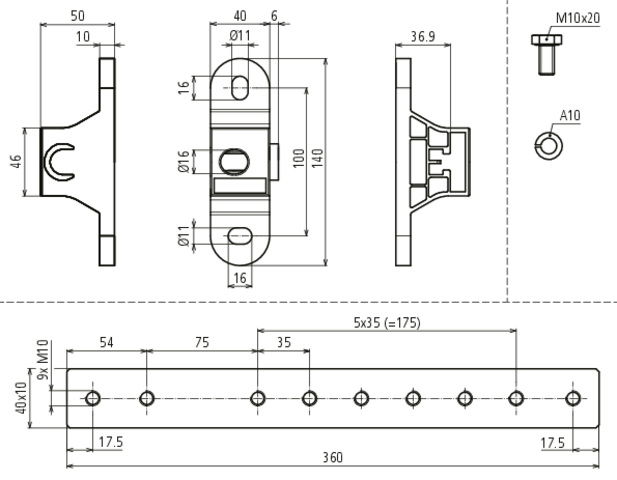

Width
|
140 mm
|
|
Height
|
50 mm
|
|
Length
|
382 mm
|
|
Insulator
|
evet
|
|
Construction type
|
Surface mounting modular
|
|
Material of clamp
|
Stainless steel 304 (V2A)
|
|
Surface of the clamp
|
Untreated
|
|
Explosion-tested version
|
evet
|
|
Material of contact rail
|
Stainless steel 304 (V2A)
|
|
Surface of the contact rail
|
Untreated
|
|
Number of connections flat conductor 30 mm
|
-
|
|
Number of connections flat conductor 40 mm
|
-
|
|
Number of connections round conductor 8 mm
|
-
|
|
Number of connections round conductor 10 mm
|
-
|
|
Number of connections round conductor total
|
-
|
|
Number of connections round conductor 8-10 mm
|
-
|
|
Number of connections conductor to 6 mm² fixed
|
-
|
|
Number of connections conductor to 16 mm² fixed
|
-
|
|
Number of connections conductor to 25 mm² fixed
|
-
|
|
Number of connections conductor to 95 mm² fixed
|
7
|
