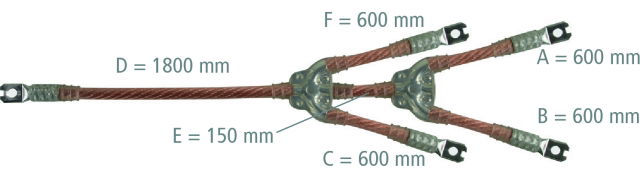

Earthing and short-circuiting cable 4-pole 95mm² with crimped cable lugs
Four-pole earthing and short-circuiting cables with unequipped phase and earth cable ends to be fitted with adequate clamps in accordance with EN/IEC 61230 (DIN VDE 0683-100). Cable cross-section: 95 mm2, max. short-circuit current: 26.5 kA / 0.5 s, cable length A,B,C,F = 600 mm, E = 150 mm and D = 1800 mm, variant No.: VABRSSE. Earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator at www.dehn.de/en/euk.
Ürün kimlikleri
SKU: VABRSSE
EAN: 4013364164048
GTIN: 4013364164048
MPN: EKV4u0 95 G VABRSSE
Kategoriler
Özellikler
|
Model
|
Cable
|
|
Material
|
Copper
|
|
Fully insulated
|
hayır
|
|
Number of poles
|
4
|
|
Length earth line
|
1800 mm
|
|
Length 1-pole rope
|
-
|
|
Length phaseline a
|
600 mm
|
|
Length phaseline b
|
600 mm
|
|
Length phaseline c
|
600 mm
|
|
Max. short circuit current
|
26.5 kA
|
|
Connecting part, earth-side
|
None
|
|
Connecting part, phase-side
|
None
|
|
Wire cross section, earth-side
|
95 mm²
|
|
Wire cross section, phase-side
|
95 mm²
|
