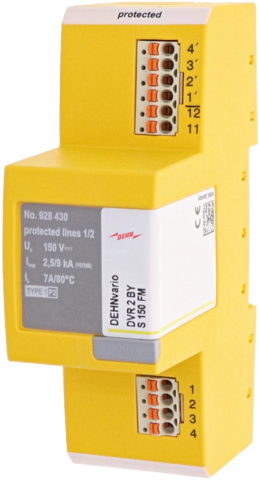

Combined arrester DEHNvario for electroacoustic systems
Compact combined arrester for protecting electroacoustic systems (e.g. voice alarm, loudspeaker systems). For protecting one galvanically isolated pair, optional direct and indirect shield earthing.
Ürün kimlikleri
SKU: 928430
EAN: 4013364261389
GTIN: 4013364261389
MPN: DVR 2 BY S 150 FM
Teknik özellikler
| Frequency | |
| Connection 1 | Push-in terminal |
| Earthing via | DIN rail (top hat rail) |

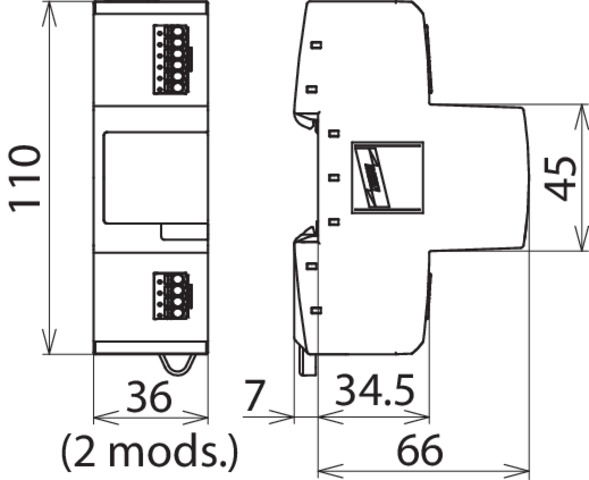

| Assembly width | 36 mm |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Limiting frequency | 1.4 MHz |
| Nominal voltage AC | 100.0 - 100.0 V |
| Nominal voltage DC |
