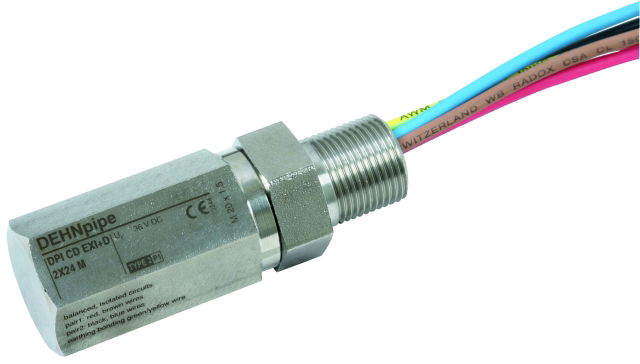

Surge arrester DEHNpipe Ex (i) (d) with M20x1.5 external thread

Name: Surge arrester DEHNpipe Ex (i) (d) with M20x1.5 external thread
Brand: DEHN
SKU: 929950

Flameproof surge arrester for use in potentially explosive atmospheres for protecting two 24 V interfaces.

Ürün kimlikleri

SKU: 929950

EAN: 4013364137387

GTIN: 4013364137387

MPN: DPI CD EXI+D 2X24 M

Kategoriler

Switchgear & Circuit Protection Circuit Breakers RCDs

Frequency
Connection 1	Connection cable
Earthing via	Separate conductor
Assembly width	-
Mounting method	Other
Limiting frequency	-
Nominal voltage AC
Nominal voltage DC	24.0 - 24.0 V
Nominal load current	0.55 A
Signal disconnection	-
Explosion-tested version	-
Signalling at the device	-
Degree of protection (IP)	IP67
Pro-active thermo-control	-
Max. continuous voltage AC	25.4 V
Max. continuous voltage DC	36 V
With remote signalling contact	-
Voltage protection level core/core	50 V
Voltage protection level core/earth	1200 V
Lightning impulse current (10/350 µs)	1.5 kA
Nominal discharge surge current (8/20)	20 kA
Number of conductors (without earthing)	4
Voltage protection level core/signal ground	-
Voltage protection level signal ground/protective ground	-

Deeplink product page
Circuit diagram
