Insulating stick 36kV M12 SK L 1000mm
Insulating stick in accordance with E DIN VDE V 0681-1, hexagon shaft. Operating head with spring locking mechanism and M12 threaded bushing. For use as switching stick, operating stick by attaching a SSK M12 switching stick head or earthing stick. Handle closed with end cap.
Ürün kimlikleri
SKU: 766001
EAN: 4013364017825
GTIN: 4013364017825
MPN: IS 36 SK 1000
Kategoriler
Teknik özellikler

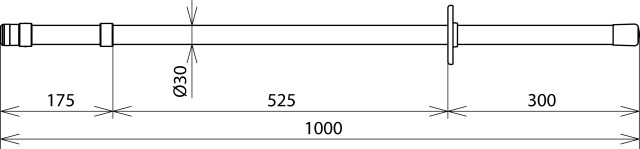

| Diameter | 30 mm |
| Total length | 1000.0 - 1000.0 mm |
| Max. head load | - |
| Type of device | - |
| Immersing depth | 175 mm |
| Nominal voltage | 1.0 - 36.0 kV |
| Recording head for | Spindle with hexagon |
| Scope of application | Interior and outdoor installations |
